Close-coupled High Pressure End Suction Centrifugal Pump
Product Series :
EAZ seriesApplicable Standard :
EN733/DIN24255 StandardCapacities :
4-400m3/hHeads :
8-150mInlet and outlet diameter: :
32-150mmSpeed(r/min) :
1450 or 2900 rpm (50Hz)/1750 or 3500rpm(60Hz)Max. Working Pressure :
1.0MPa standard; 1.6MPa on requestTemperature :
85℃（standard）；120℃（on request）EAZ Close-coupled High Pressure End Suction Centrifugal Pump
As a close-coupled variant of the EA series, the EIFEL EAZ series dispenses with coupling components. The motor shaft is directly inserted into the pump shaft, which not only ensures precise concentricity but also reduces the overall axial dimension. Featuring highly interchangeable components and a space-efficient structure, this series is applicable to a broad range of scenarios, including industrial plants, mining operations, municipal water supply, fire-fighting facilities, air-conditioning systems and agricultural irrigation.

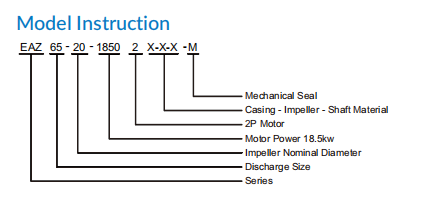

Water Pump
Material Code
C: Cast Iron
45: ASTM 1045
Q: Ductile Iron
S304: ASTM304
B: Brass
S316: ASTM316
S: ASTM 420
M: Mechanical Seal
Design & Structure
| Design | Performance and dimensions referring to the European standard BS EN733/DIN24255 | ||
| Structure | Close-coupled, Axial End-Suction, Single-Stage, Single-Suction, Volute Casing | ||
| DN (mm) | 32-150 | ||
| Flange | DIN2501 PN16 GB /T17241.6 PN1.6 | ||
| Motor | IEC standard motor |
Material
| Part | Standard Material | Options on request |
| Casing | Cast Iron | Ductile Iron/ ASTM304(CF8)/ ASTM316(CF8M) |
| Impeller | Brass | Cast Iron/ Bronze/ ASTM304(CF8)/ ASTM316(CF8M) |
| Shaft | ASTM420 | ASTM304/ ASTM316/ ASTM1045 |
| Shaft Seal | Mechanical Seal | - |
Operating Data
| Flow Rate(Q) | 4-400m²/h |
| Head(H) | 8-150m |
| Speed | 1450 or 2900 rpm(50Hz) /1750 or 3500 rpm(60Hz) |
| Max Temperature | 85℃(standard)；120℃ (on request) |
| Working Pressure | 1.0 MPa (standard);1.6MPa (on request) |
| Conveying Medium | Clean water or liquids similar to clean water in physical property |

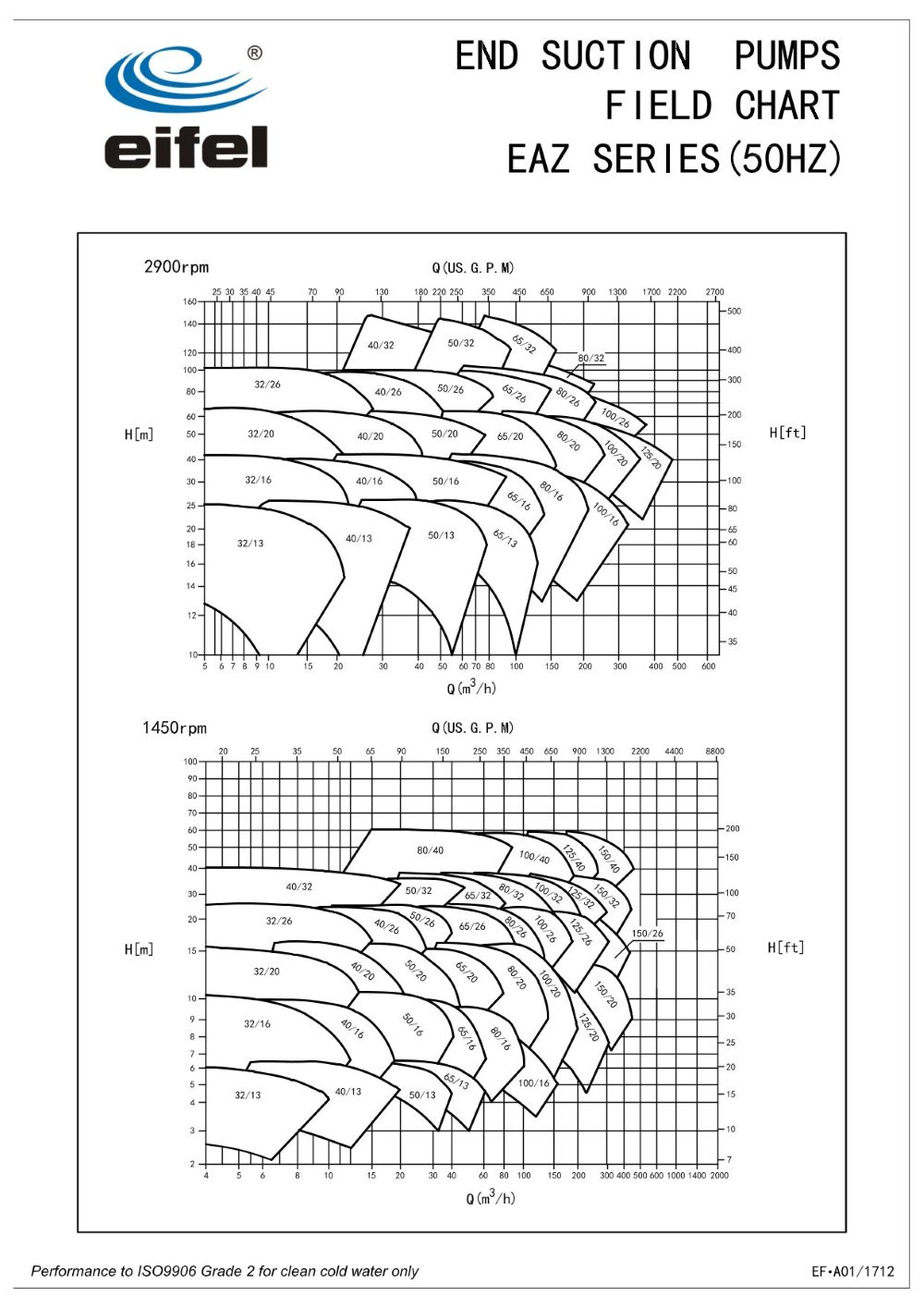

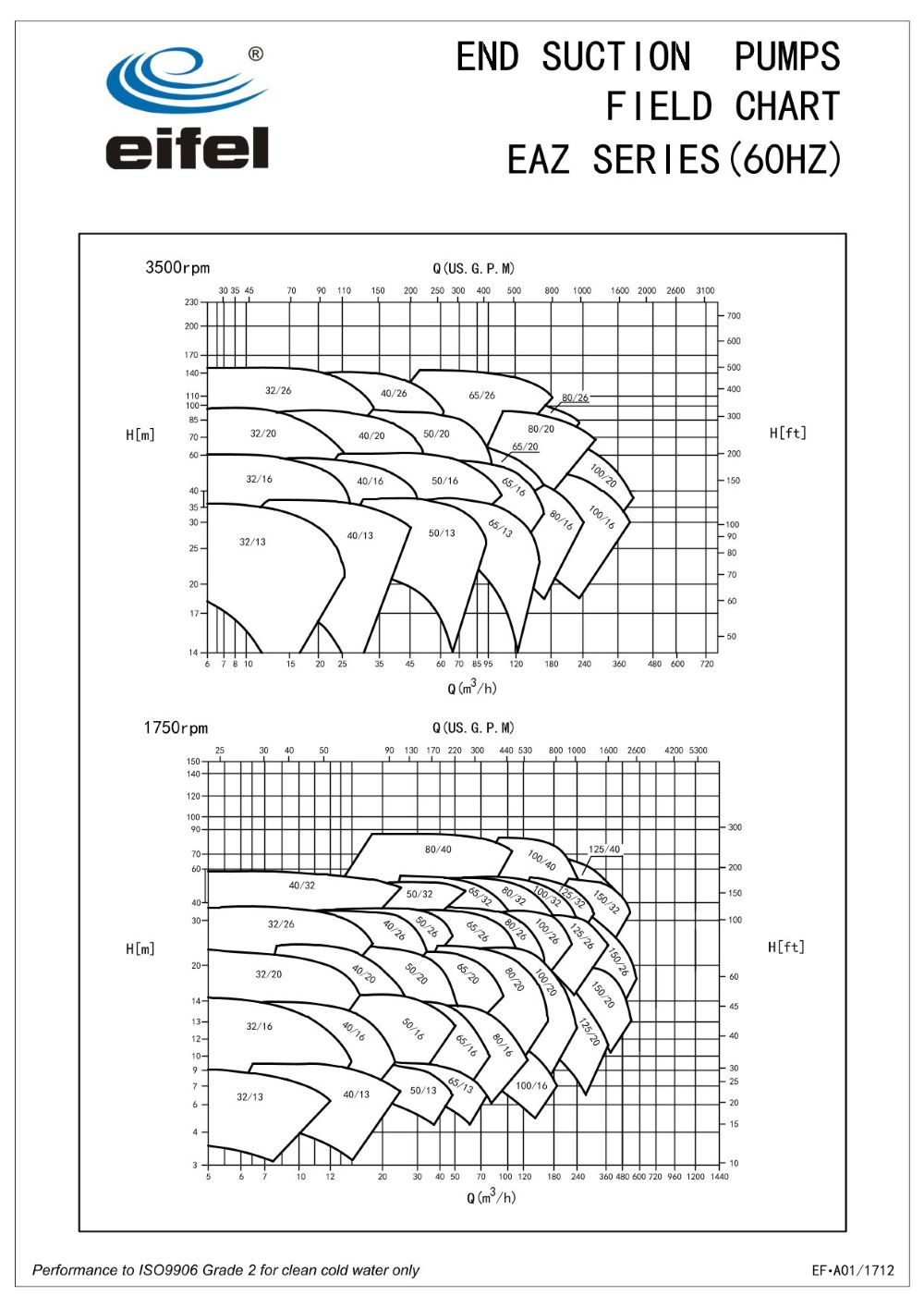

Field Chart
EIFEL EAZ series are Close-coupled type of EA series. No need to use couplings and motor shaft is plugged into pump shaft to ensure concentricity and shorten the axial length.
Read More
This is a close-coupled pump. It requires no separate coupling, as the motor shaft directly connects to the pump shaft. This design guarantees perfect concentricity and reduces overall axial length.
Read More
This pump adopts a close-coupled structure where the motor shaft connects directly to the pump shaft, eliminating the need for a separate coupling. This design delivers exceptional concentricity and a shorter overall axial length for easier installation.
Read More
This pump is close-coupled type, no need to use couplings and motor shaft is plugged into pump shaft to ensure concentricity and shorten the axial length.
Read More
