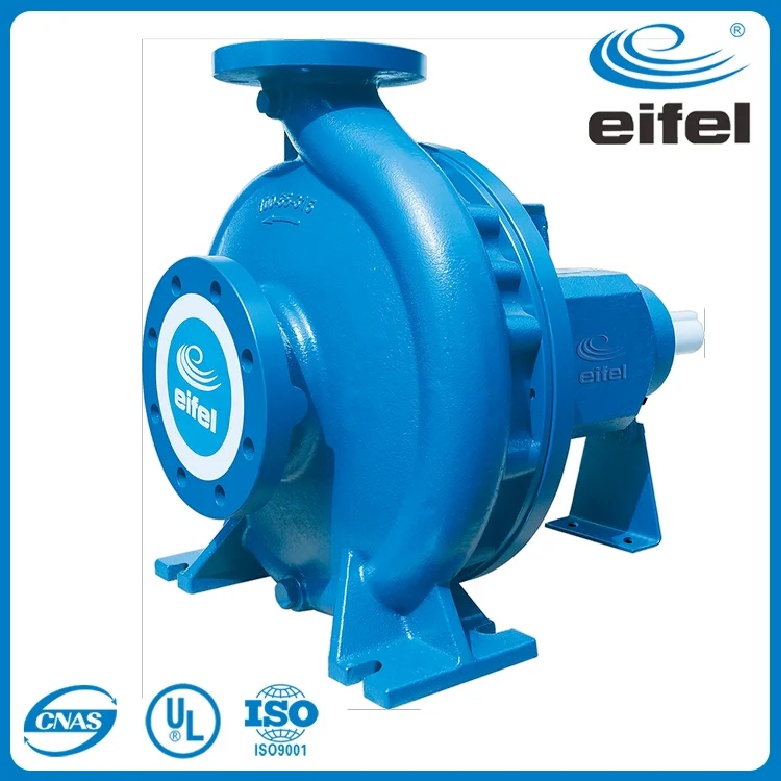

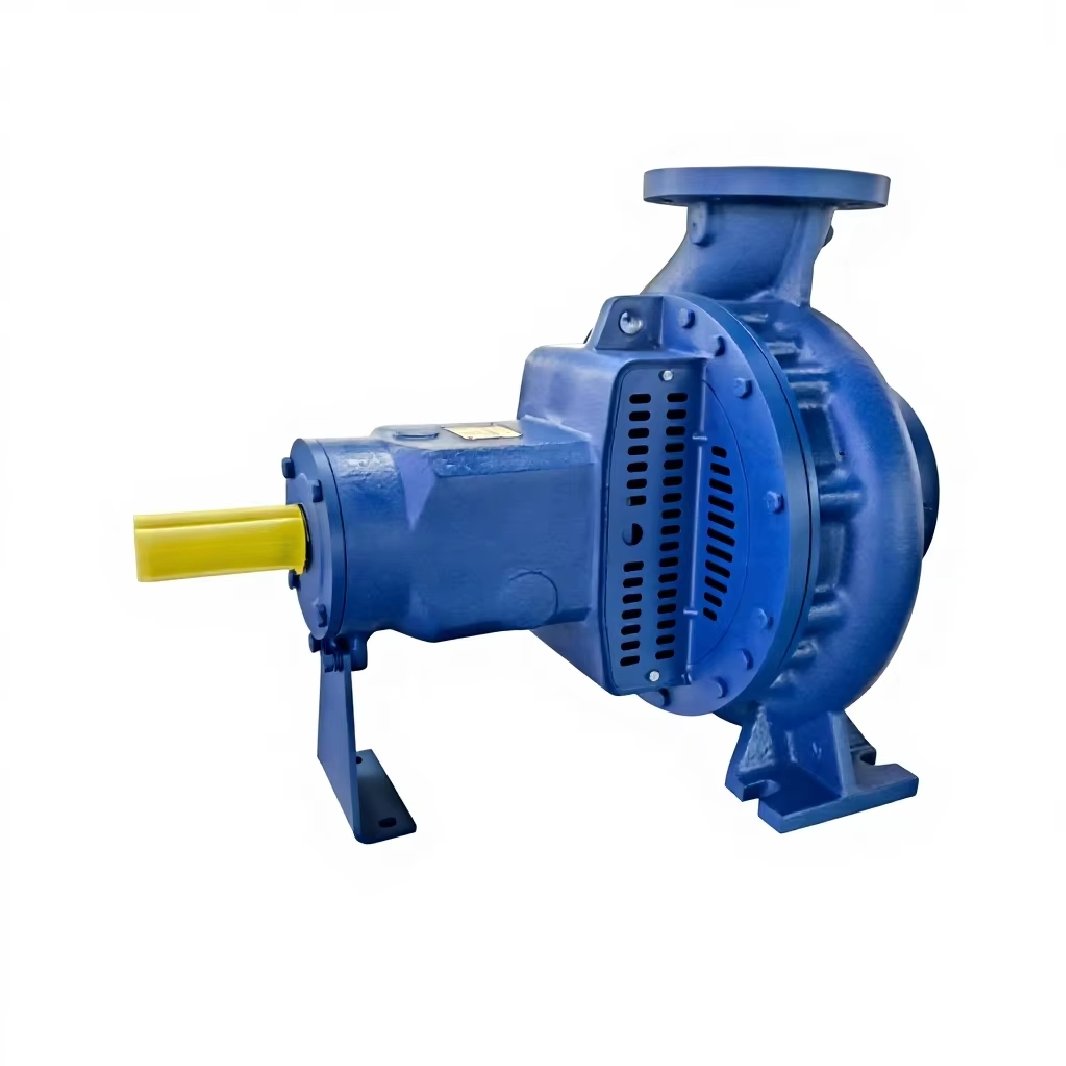

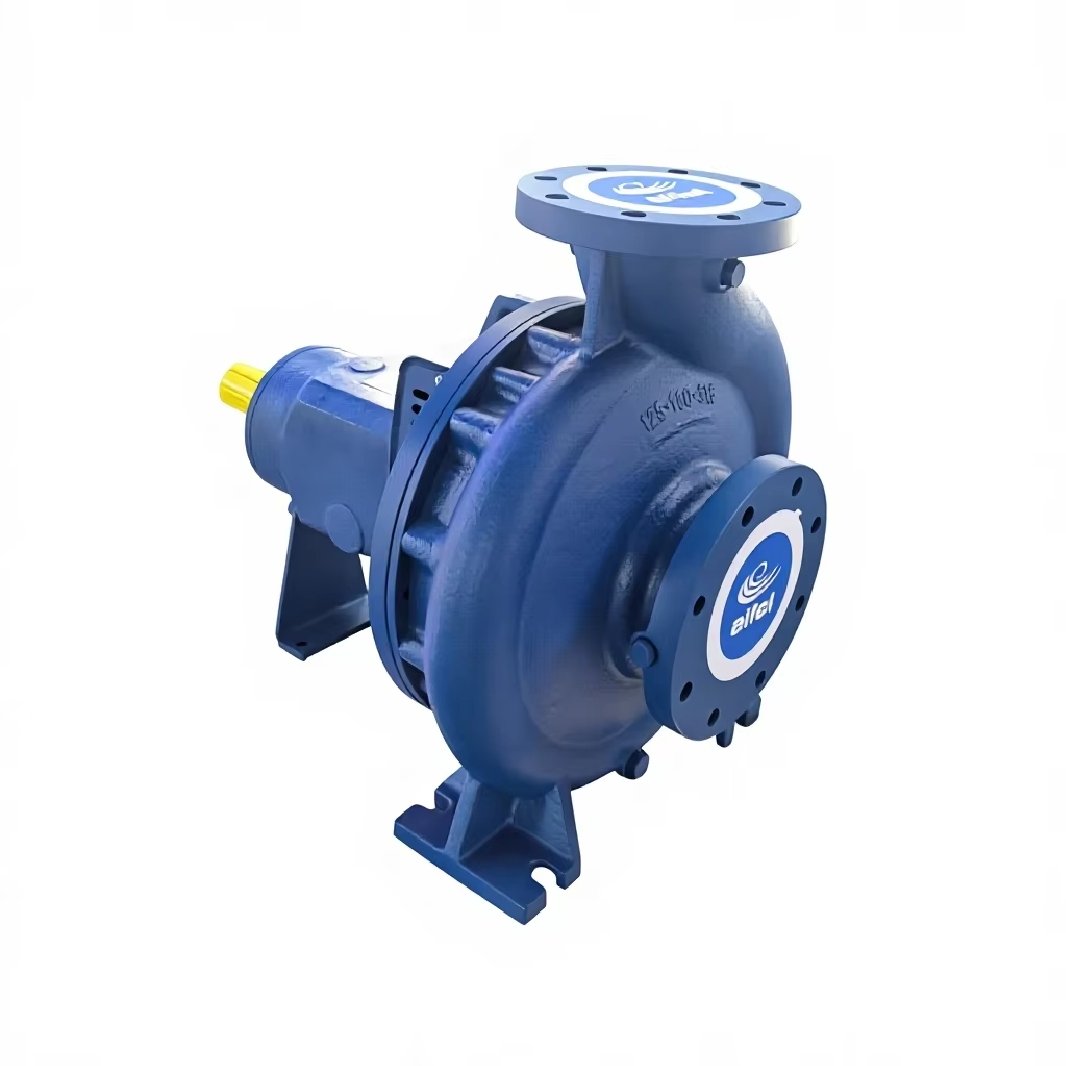

Eifel ISO2858 Standard Horizontal Single Stage Centrifugal Water Pump
This pump is designed in accordance with ISO 2858 standard while the performance even better than ISO 2858. Pumps have superior hydraulic design, by which significantly higher efficiencies are achieved for less power consumption. The flow rates are 1.6 times and the heard are 1.25 times of their correspondent sizes in ISO 2858 standard.
Product Series :
EH SeriesApplicable Standard :
ISO2858 StandardCapacities :
4~1000m3/hHeads :
2~160mInlet and outlet diameter: :
32~200mmSpeed(r/min) :
1450rpm / 2900rpm (50Hz); 1750rpm / 3500rpm (60Hz)Max. Working Pressure :
1.6MPa (standard) ; 2.4MPa(on special request)Temperature :
-15~80℃(standard) ; 80~120℃(on special request)Eifel High-Efficiency End Suction Centrifugal Water Pump
Pump performance is adjusted by changing the impeller size. The product line uses four shaft specifications combined with four bearing housing types, and pumps with the same housing can share major components such as the shaft, sealing parts, and impeller fasteners.

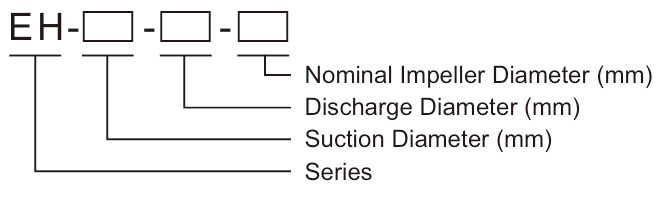

Model Instruction
Highlights
The pumps deliver 1.6 times the flow and 1.25 times the head compared to the matching sizes in ISO 2858.
Material
| Pump Part | Material |
| Casing | Cast Iron |
| Ductile Iron | |
| Impeller | Cast Iron |
| Brass | |
| Bronze | |
| Stainless Steel | |
| Shaft | Carbon Steel |
| Stainless Steel |
Applications
Operating Data
| Design | performance and dimensions referring to the European standard BS EN733 / DIN24255 |
| Structure | horizontal, axial end-suction, single stage, single -suction, volute casing, back pull-out |
| DN(mm) | 50 |
| Flange | DIN2501 PN16 GB/T17241.6 PN1.6 (ANSI, JIS, AS...) |
| Flow Rate(Q) | 6.9~17.3m3/h |
| Head(H) | 5.1~11m |
| Speed | 1450rpm (50Hz) |
| Max. Temperature | 85℃(standard); 120℃(on request) |
| Working Pressure | 1.0MPa standard; 1.6MPa on request |
| Conveying Medium | clean water or liquids similar to clean water in physical property |

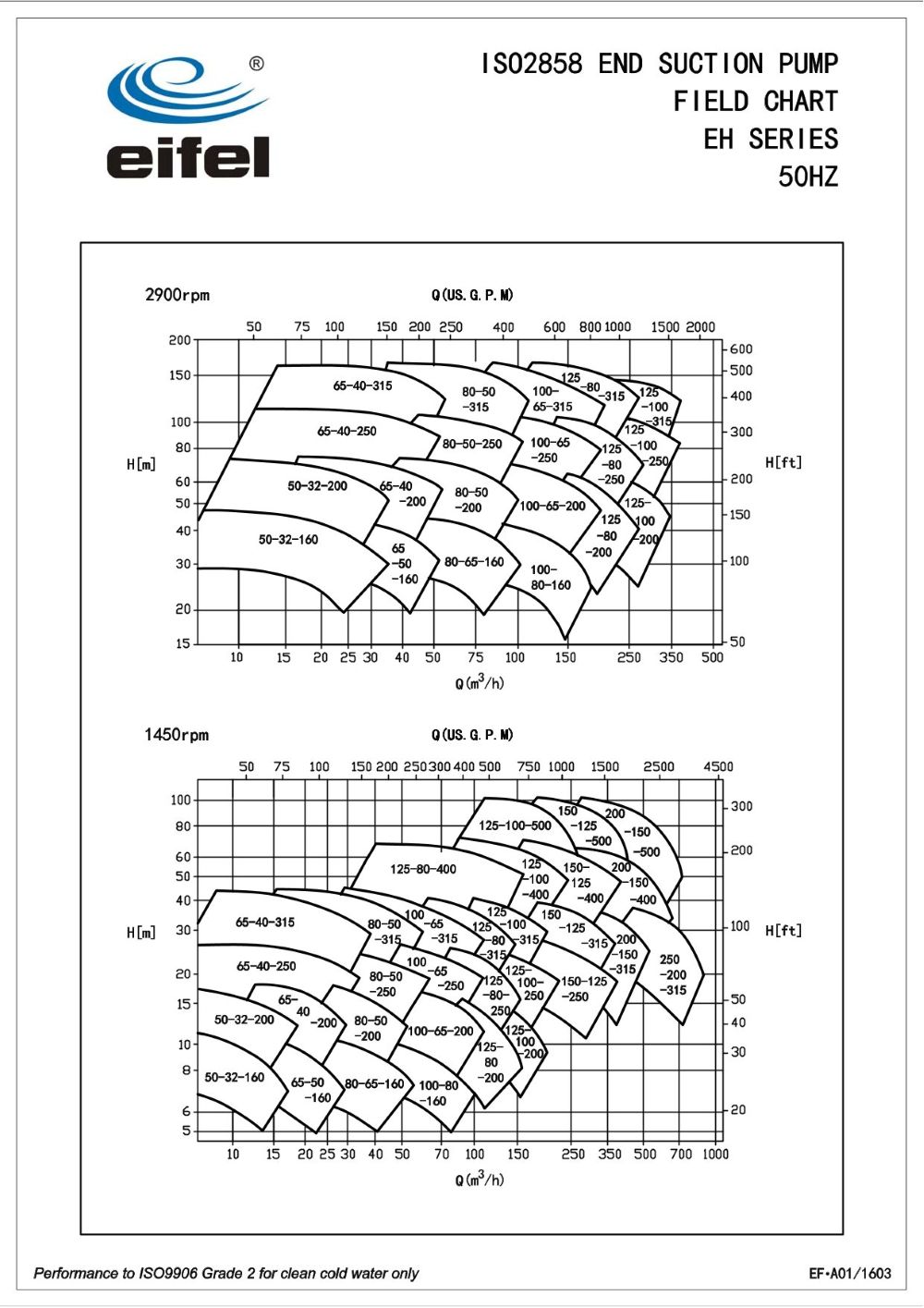

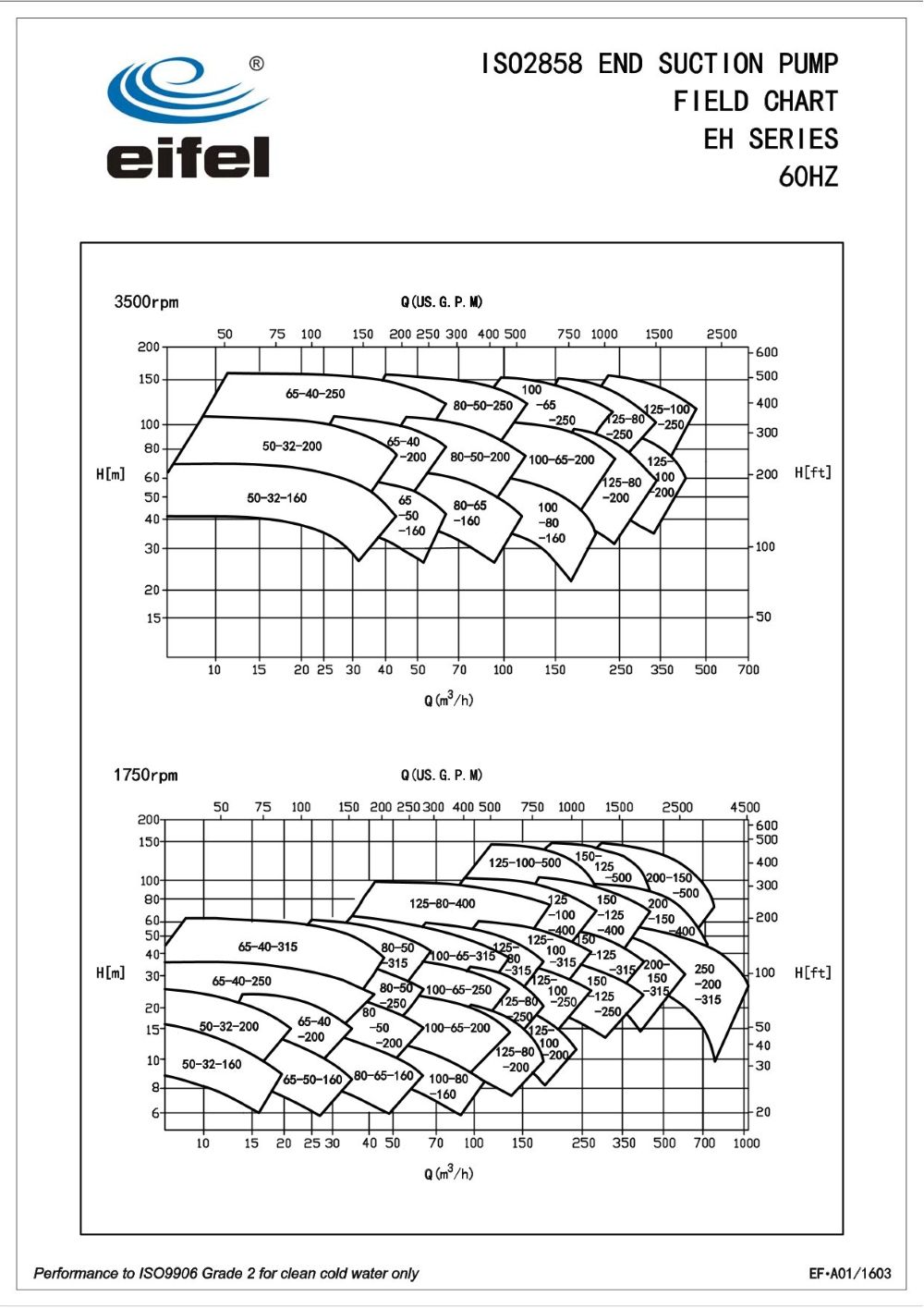

Field Charts
This pump is designed in accordance with ISO 2858 standard while the performance even better than ISO 2858. Pumps have superior hydraulic design, by which significantly higher efficiencies are achieved for less power consumption. The flow rates are 1.6 times and the heard are 1.25 times of their correspondent sizes in ISO 2858 standard.
Read More
This pump is designed in accordance with ISO 2858 standard while the performance even better than ISO 2858. EH pumps have superior hydraulic design, by which significantly higher efficiencies are achieved for less power consumption.
Read More
