Eifel Cast Iron Close-Coupled End Suction Centrifugal Water Pump for Irrigation
This pump is close-coupled type, no need to use couplings and motor shaft is plugged into pump shaft to ensure concentricity and shorten the axial length.
Product Series :
EAZ SeriesApplicable Standard :
DIN24255 / EN 733 standardCapacities :
4~400m³/hHeads :
8~150mInlet and outlet diameter: :
32~150mmSpeed(r/min) :
1450 or 2900 rpm(50Hz) / 1750 or 3500 rpm(60Hz)Max. Working Pressure :
1.0 MPa standard; 1.6 MPa on requestTemperature :
85~120℃Eifel EAZ Series Closed-Coupled End Suction Centrifugal Water Pump
This pump highly interchangeable parts, space saving, various applications in plants, mines, city water supplies, fire-fighting systems, air-condition systems and irrigation.

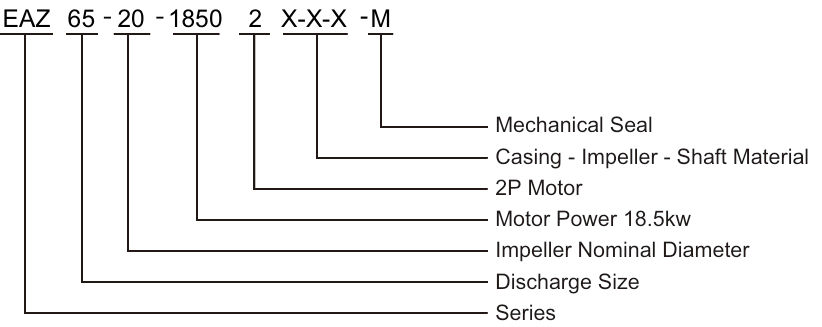

Model Instruction
Material Code
| C: Cast Iron | 45: ASTM 1045 |
| Q: Ductile Iron | S304: ASTM 304 |
| B: Brass | S316: ASTM 316 |
| S: ASTM 420 | M: Mechanical Seal |
Applications
Operating Data
Flow Rate (Q): 4~400m3/h
Head (H): 8~150m
Speed: 1450 or 2900 rpm (50Hz) / 1750 or 3500 rpm (60Hz)
Max Temperature: 85℃ (standard); 120℃ (on request)
Working Pressure: 1.0MPa standard; 1.6MPa on request
Conveying Medium: Clean Water or Liquids Similar to Clean Water in Physical Property
Design & Structure
| Design | Performance and Dimensions referring to the European Standard BS EN733/ DIN24255 Standard |
| Structure | Close-Coupled, Axial End-Suction, Single-Stage, Single-Suction, Volute Casing |
| DN (mm) | 32~150 |
| Flange | DIN2501 PN16 GB/ T17241.6 PN1.6 |
| Motor | IEC Standard motor |

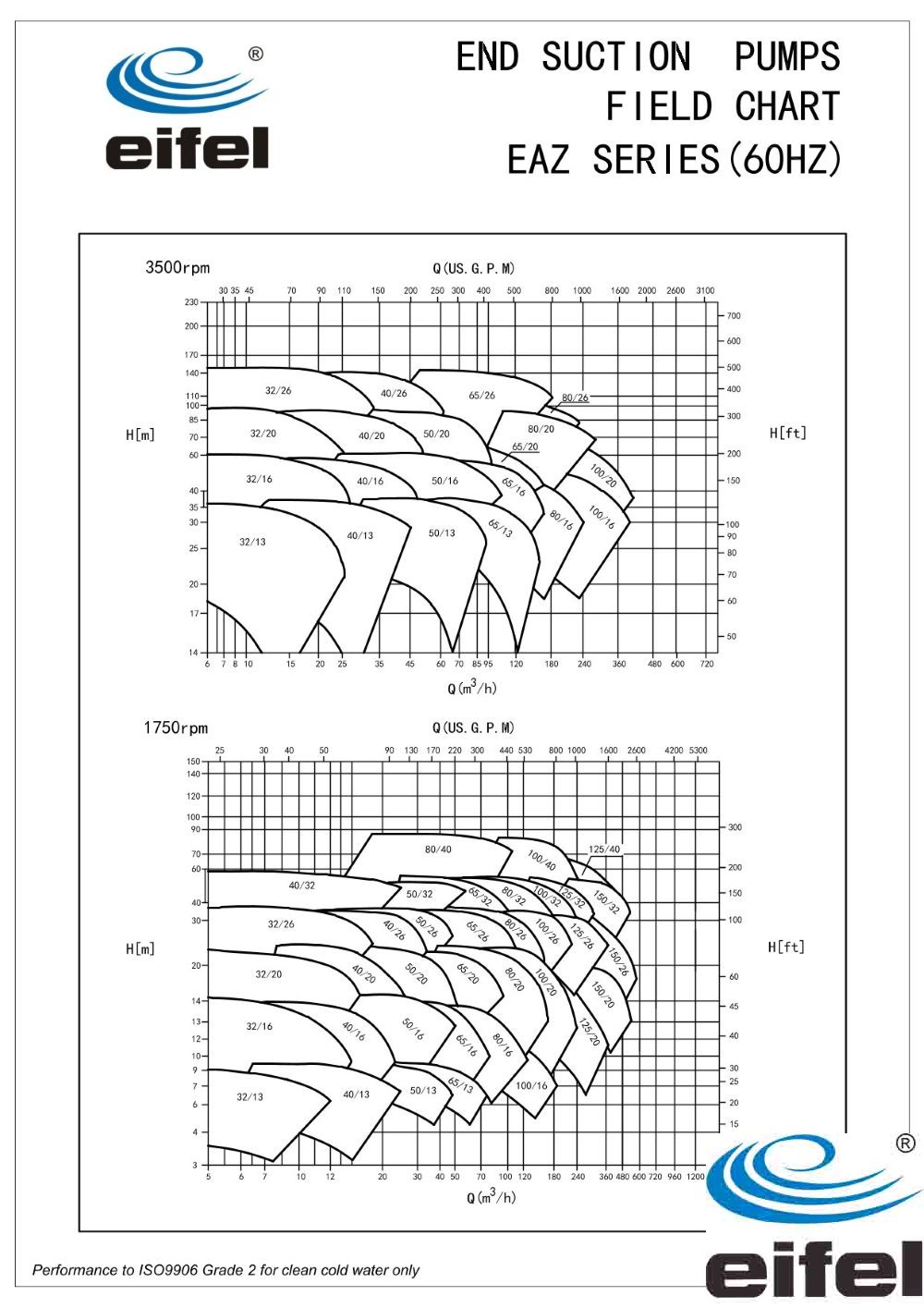

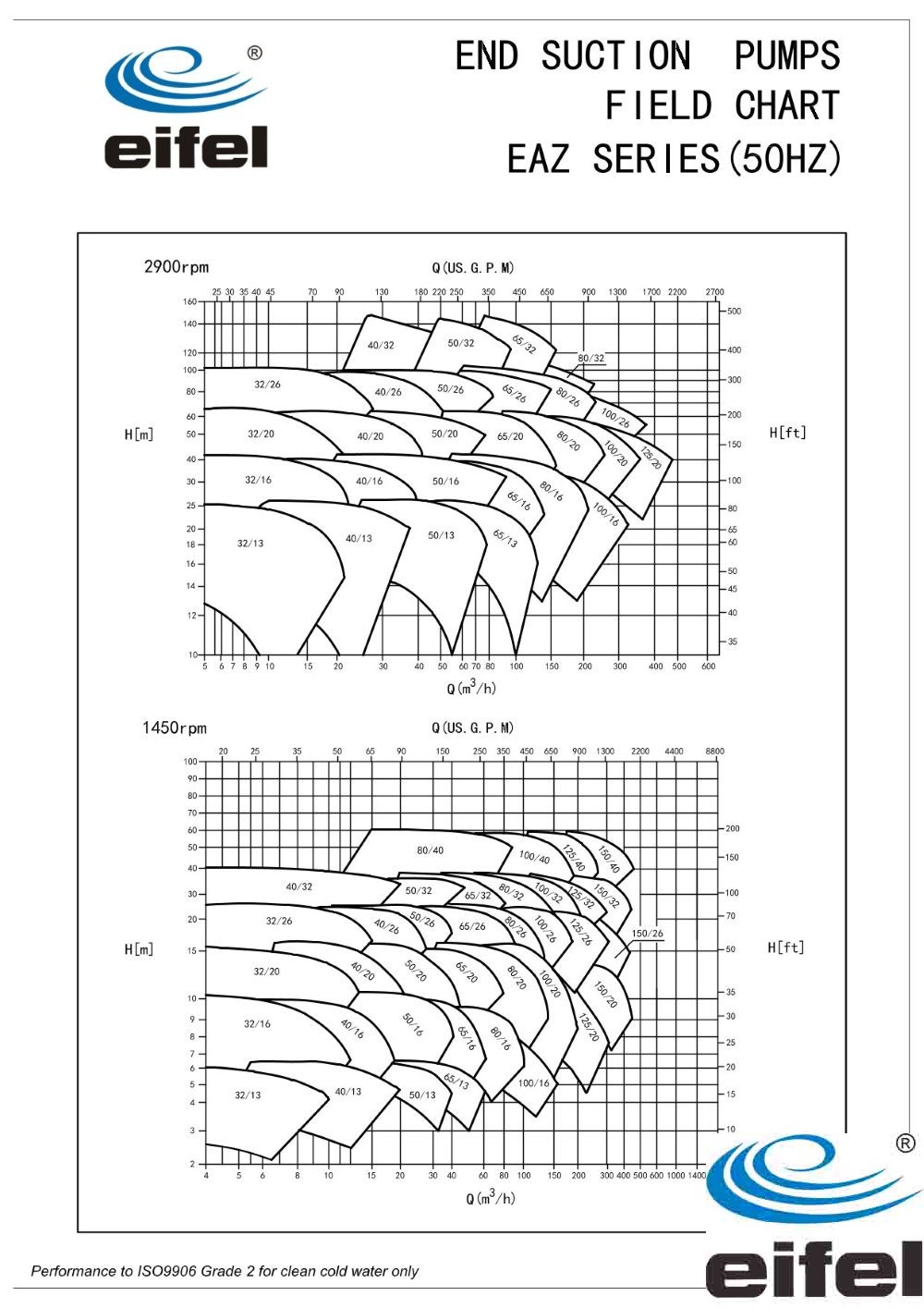

Field Charts
EIFEL EAZ series are Close-coupled type of EA series. No need to use couplings and motor shaft is plugged into pump shaft to ensure concentricity and shorten the axial length.
Read More
This pump is close-coupled type, no need to use couplings and motor shaft is plugged into pump shaft to ensure concentricity and shorten the axial length.
Read More
