Eifel Energy Saving End Suction Industrial Centrifugal Pump

Frequency-Converting Control End Suction Centrifugal Pump

Eifel Energy Saving End Suction Industrial Centrifugal Pump

ElFEL EK series are brand new, unique and innovative industrial pumps designed in compliance with DIN24255and lS09908 standards, with an energy efficiency index of more than MEl 0.4 / 0.7, satisfying EU MEl requirements.

  • Product Series :

    EK Series

  • Applicable Standard :

    DIN24255 and ISO9908 Standard

  • Capacities :

    4-1584m3/h

  • Heads :

    5-150m

  • Inlet and outlet diameter: :

    32-300mm

  • Speed(r/min) :

    1450 or 2900 rpm (50Hz)/1750 or 3500rpm(60Hz)

  • Max. Working Pressure :

    1.0MPa standard; 1.6MPa on request

  • Temperature :

    -10~85℃（standard）；85~105℃（on request）
Inquire Now

EKD Series Energy Saving End Suction Industrial Centrifugal Pump

The ELFEL EK series represents a portfolio of innovative, one-of-a-kind industrial pumps developed from scratch, engineered to comply with the specifications of DIN24255 and ISO9908 standards. Boasting an energy efficiency index exceeding MEI 0.4/0.7, these pumps fully conform to EU MEI criteria. Available with diverse material configurations, the EK series’ new end-suction industrial models are well-suited to address the demands of clients in key industrial sectors.

Leveraging its extensive expertise and customer-centric requirements, ELFEL upholds the core design tenets of reliability and high efficiency. By applying its proprietary continuous optimization technology, the company ensures that the EK series operates under strictly controlled conditions, thereby achieving a notable reduction in the pumps’ overall life-cycle costs.

Operating Date
Discharge Size: DN32-300mm
Power:0.55-315kw
Head: 5-150m
Flow Rate: 4-1584m3/h

Main Features
Medium Temperature: -10-85C(standard)
85-105℃(on special request)
Working Pressure: 1.0MPa(standard)
1.6MPa (on special request)
Flange: DIN2501 PN16 GB/T17241.6 PN1.6(ANSI, JIS, AS...)

Industrial Capability
The pump series supports sizes up to DN 300 with a maximum flow of 1,584 m³/h. PN10 and PN16 versions are available, with multiple material options for key components. Optimized hydraulics reduce operating noise, while reinforced rotors and an HT250 casing enhance durability and structural strength.

Cost & Installation Efficiency
Compliance with DIN 24255 and ISO 9908 allows easy system integration. A modular design simplifies spare parts management and shortens supply cycles.

Energy Efficiency
With MEI above 0.7, hydraulic efficiency is improved by over 10% compared to earlier models. Variable-speed control enables energy savings exceeding 50% under suitable operating conditions, while wear rings and stainless-steel sleeves help extend service life.

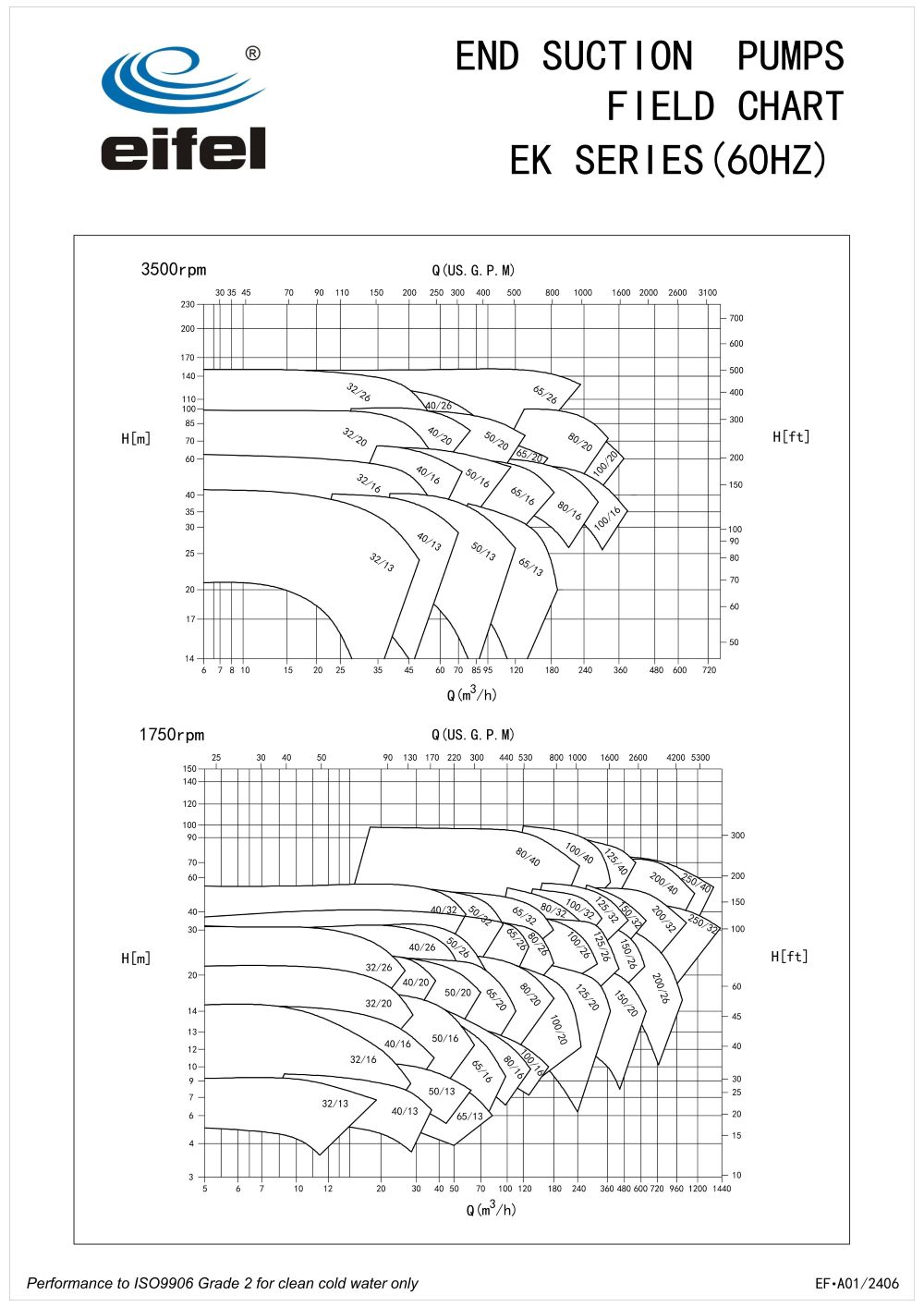

Field Chart
