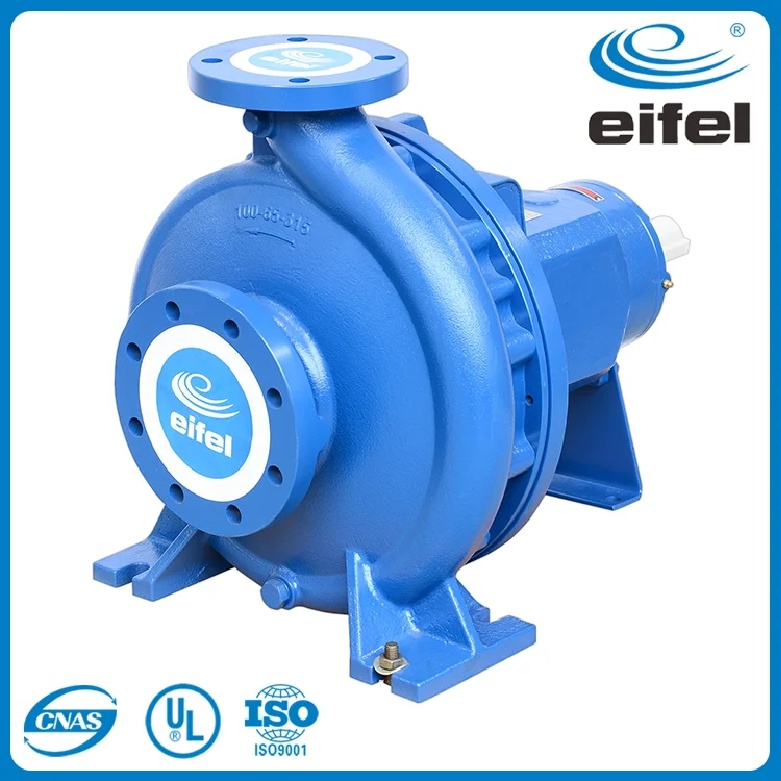

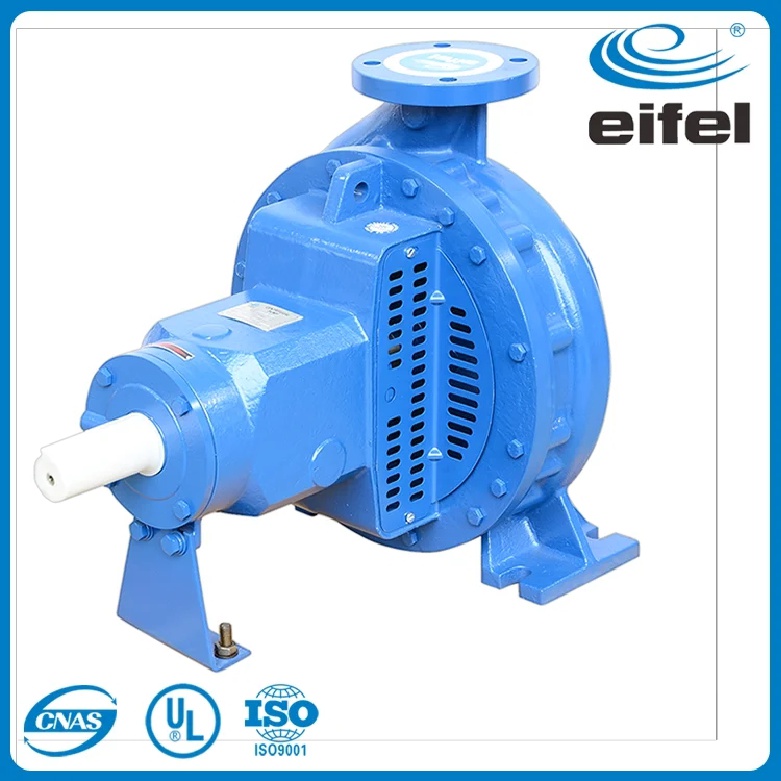

ISO2858 Standard Horizontal High-Efficiency End Suction Centrifugal Pump
This pump is designed in accordance with ISO 2858 standard while the performance even better than ISO 2858. EH pumps have superior hydraulic design, by which significantly higher efficiencies are achieved for less power consumption.
Product Series :
EH SeriesApplicable Standard :
ISO 2858 StandardCapacities :
1000 m3/hHeads :
160 mInlet and outlet diameter: :
32~300 mmSpeed(r/min) :
1450/ 2900rpm (50Hz) ; 1750/ 3500rpm (60Hz)Max. Working Pressure :
1.6~2.4MPaTemperature :
-15℃~80℃ (Normal Material); 80℃~120℃ (Special Material)ISO2858 Standard Horizontal High-Efficiency End Suction Centrifugal Pump
Pump performance can be changed by impeller trimming. There are 4 sizes of shafts and 4 sizes of bearing housing in the whole series, and any of the parts such as shaft, shaft sleeve, shaft seal and impeller nut of one pump are interchangeable with other of the same bearing housing.
Highlights
The flow rates are 1.6 times and head are 1.25 times of their correspondent sizes in ISO 2858 standard.
Model Instruction
Material Code
C：cast iron
Q：ductile iron
B：brass
B85: bronze
S: ASTM 420
45: ASTM 1045
S304: ASTM 304
S316: ASTM 316
Technical Information
| Design | performance and dimensions referring to the European standard BS EN733 / DIN24255 |
| Structure | horizontal, axial end-suction, single stage, single -suction, volute casing, back pull-out |
| DN (mm) | 100 |
| Flange | DIN2501 PN16 GB/T17241.6 PN1.6 (ANSI, JIS, AS...) |
| Flow Rate(Q) | 45~112.3m3/h |
| Head(H) | 17.8~38.4m |
| Speed | 1450rpm (50Hz) |
| Max. Temperature | 85℃ (standard); 120℃ (on request) |
| Working Pressure | 1.0MPa standard; 1.6MPa on request |
| Conveying Medium | clean water or liquids similar to clean water in physical property |

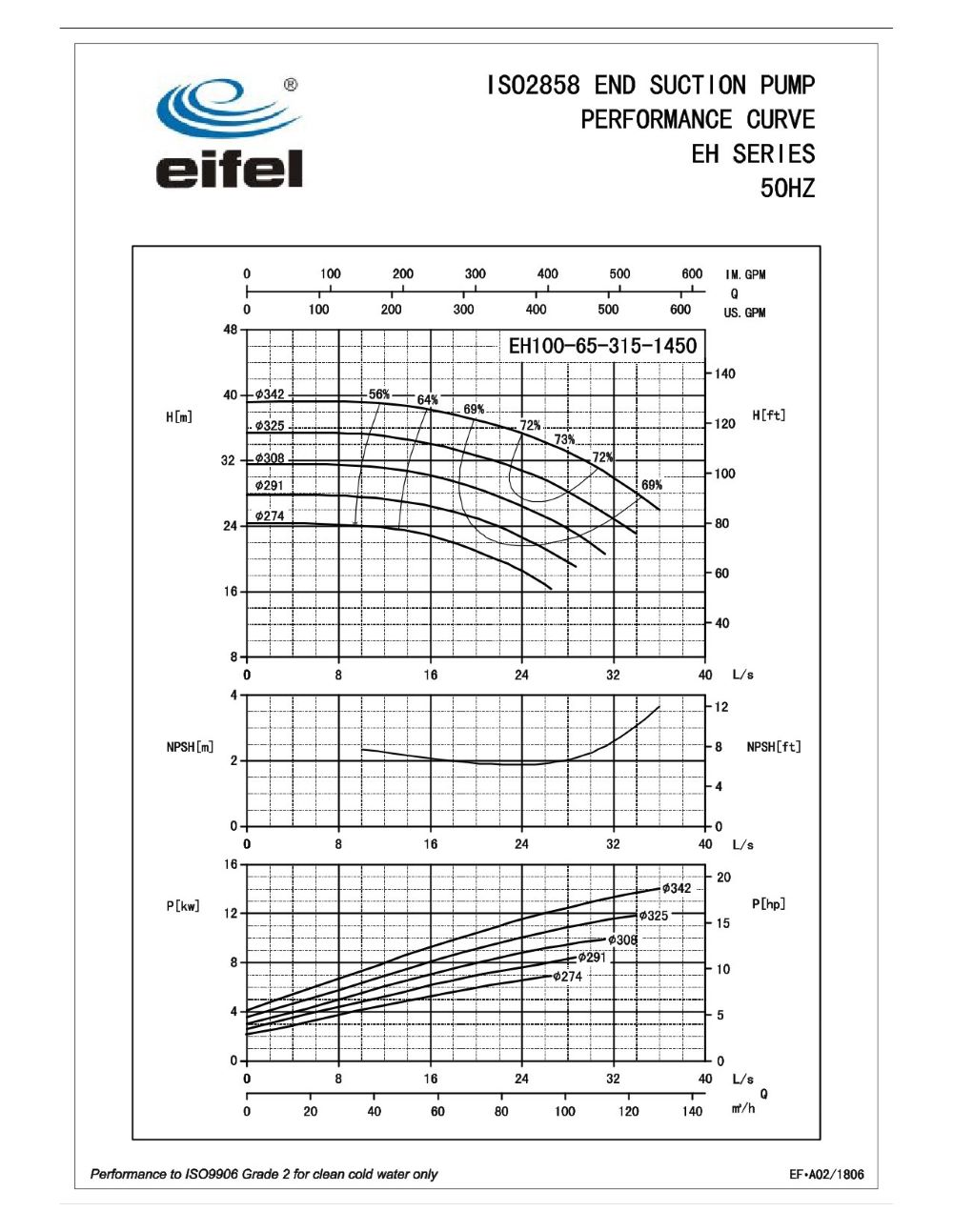

Performance Curve
FAQ
Q：How long is the warranty period？
A：One year.
Q：Does it support customization?
A：The pump bearing housing logo, paint color, nameplate layout, and sealing sticker can all be customized
Q：How long is the delivery time?
A：The delivery time for cast iron pumps is 60 days, and the delivery time for stainless steel pumps is 75 days.
Q：What are your terms of delivery?
A：EXW, FOB, CNF, CIF
Q：Are you a manufacturer or a trading company?
A：We are a pump manufacturer, we have 21-year experience in pump producing, our factory is in Fuzhou, Fujian Province.
This pump is designed in accordance with ISO 2858 standard while the performance even better than ISO 2858. Pumps have superior hydraulic design, by which significantly higher efficiencies are achieved for less power consumption. The flow rates are 1.6 times and the heard are 1.25 times of their correspondent sizes in ISO 2858 standard.
