Eifel Low-Noise Horizontal Self-Priming Electric Sewage Pump
EIFEL EJ series are self-priming, solids handling, resistant to abrasion. These pumps can 2 handle liquids up to a viscosity of about 50 mm/s.
Product Series :
EJD SeriesCapacities :
4~468m3/hHeads :
4~55mInlet and outlet diameter: :
40~200mmSpeed(r/min) :
1450~3600 rpm; lower speed on requestSolids Size :
76mmEifel EJD Series Low-Noise Horizontal Self-Priming Electric Sewage Pump
Boasting self-priming function, solids-handling performance, and strong abrasion resistance, EIFEL EJ Series pumps stand out for their ability to handle liquids with viscosity up to 50 mm/s. Designed with advanced Maintenance Hole and Wear Plate, they allow hassle-free cleaning and flushing. Ideal for a wide range of scenarios, the EJ and EJZ pumps are widely applied in industrial production, marine operations, and waste treatment systems.

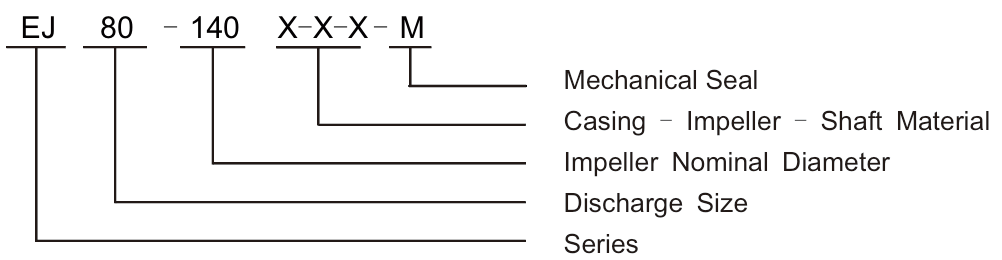

Model Instruction
Design & Structure
| Design | Performance and Dimensions referring to the European standard |
| Structure | Semi-open impeller, Single-Suction, Self-priming, Maintenance Hole, Wear Plate |
| Flange | Pump casings are casted with flanges; Screw flange for discharge size <100 mm |
Material
| Part | Standard Material | Options on request |
| Casing | Cast Iron | Ductile Iron |
| Impeller | Ductile Iron | Bronze / ASTM304(CF8) / ASTM316(CF8M) |
| Wear Plate | Cast Iron | Bronze / ASTM304 / ASTM316 |
| Shaft | ASTM1045 | ASTM304 / ASTM316 / ASTM420 |
| Shaft Sleeve | Mechanical Seal |
- |
Operating Data
| DN (mm) | 40~200 |
| Flow Rate (Q) | 4~468m/h |
| Head (H) | 4~55m |
| Max Solids Size | 76mm |
| Self-priming Head | 3~7m |
| Speed | 1450~3600 rpm; lower speed on request |
| Max Temperature | 80℃ |
| Conveying Medium | Neutral, acid or alkali clean or dirty liquids, containing sand, mud or solids in suspension |
Field Chart
EIFEL EJ series are self-priming, solids handling, resistant to abrasion. These pumps can 2 handle liquids up to a viscosity of about 50 mm/s.
