EHCY Series

Home Diesel Engine Pump Set EHCY Series

ISO 2858 Standard High-efficiency End Suction Centrifugal Pump Units

ISO 2858 Standard High-efficiency Pump
ISO 2858 Standard High-efficiency End Suction Centrifugal Pump Units

ISO 2858 Standard High-efficiency End Suction Centrifugal Pump Units

EHCY ISO 2858 Standard High-efficiency centrifugal pump units are highly dependable pumps suitable for wellpoint systems or sump pumping on site.

  • Product Series :

    EHCY Series

  • Capacities :

    4-1000m3/h

  • Heads :

    2-160m

  • Inlet and outlet diameter: :

    32~200mm

  • Speed(r/min) :

    1450 ~3600 rpm

  • Max. Working Pressure :

    1.6 MPa（standard）；2.4 MPa（on special request）

  • Temperature :

    -15~80℃（standard）；-80~120℃（on special request）
Inquire Now
EHCY ISO 2858 Standard High-efficiency End Suction Centrifugal Pump Units for industrial use
EHC series diesel engine pump sets are engineered for the conveyance of clean water devoid of solid particulates at temperatures not exceeding 80°C, or fluids bearing physical and chemical characteristics akin to water. These sets find extensive application in water supply systems across a myriad of contexts including fire safety, communal domestic water systems, construction, civic management, industrial and mining operations, maritime supply and drainage, as well as field deployments.The EHC series boasts a robust performance, a streamlined structure, ease  of operation and maintenance, alongside a versatile spectrum of pressure and flow configurations. The apparatus incorporates fire water pumps manufactured in-house, diesel engines sourced from esteemed domestic and international labels, and a control system characterised by a high automation quotient. Distinguished by cutting-edge technology,elevated automation levels, exceptional performance, comprehensive protection features, a logical design, straightforward installation, and exceptional value for money, this equipment is ideal for fire safety measures or any scenario necessitating emergency backup water pumps.The system is outfitted with various automatic control mechanisms, ensuring the unit remains operationally ready over prolonged periods and can be activated promptly when required

Benefits
High continuous air capacity
Large diameter solids handled, making the units suitable both for sump pumping and for well point systems
Robust construction: cast iron separator and stainless steel float mechanism

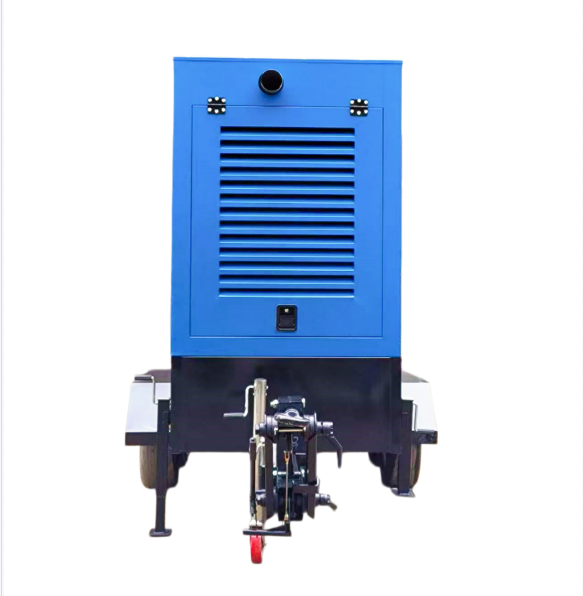

Arrangement on heavy duty two wheeled site trailer incorporating fuel tanks for 24 hours of operation
On request: silenced versions, tubular protection frame, skid base, fast tow trailers.

Applications
CIVIL ENGINEERING
Wellpoint dewatering systems
Horizontal drainage with drainage hoses.
Construction site dewatering
Sewage by-pass
Quarries
Sludge and slurry
Fire Fighting System

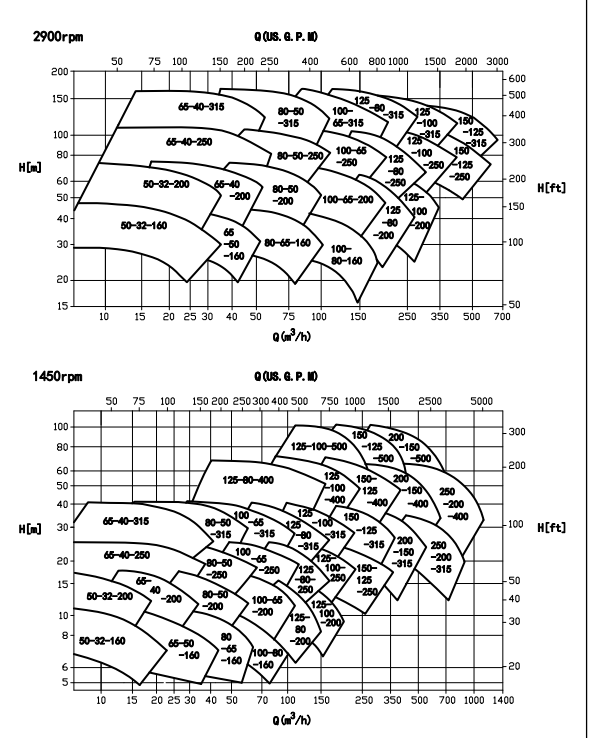

Field Chart
