EJCY Vacuum Assisted Self-priming Centrifugal Pump Units solids handling pump for industrial use
EJCY vacuum-assisted self-priming centrifugal pump units are high-reliability equipment tailored for wellpoint systems and on-site sump pumping applications. Each unit is configured with a heavy-duty EJ/EJT series self-priming centrifugal pump as its core component, which is capable of conveying liquids containing suspended solids (refer to the J/J pump leaflet for detailed parameters).
A separator is closely integrated with the liquid pump casing, serving as the zone where air or entrained gases are separated from the liquid medium and subsequently extracted by a vacuum pump. The integration of the vacuum pump enables the unit to realize dry priming operation—eliminating the need for pre-filling the pump casing with liquid—and to process substantial air volumes. This functionality allows the unit to prime wellpoint systems, maintain stable vacuum pressure within the systems, and ensure thorough dewatering of excavations under snore operating conditions.
Benefits
Automatic dry priming with vacuum pump
High continuous air capacity
Self-priming centrifugal pump which secures operation in case of a fault with the vacuum pump
Large diameter solids handled, making the units suitable both for sump pumping and for wellpoint systems
Robust construction: cast iron separator and stainless steel float mechanism
Oil lubricated vacuum pump with oil recovery system
Arrangement on heavy duty two wheeled site trailer incorporating fuel tanks for 24hours of operation
On request: silenced versions, tubular protection frame, skid base, fast tow trailers.
Applications
CIVIL ENGINEERING
Wellpoint dewatering systems
Horizontal drainage with drainage hoses.
Construction site dewatering
Sewage by-pass
Quarries
Sludge and slurry
Fire Fighting System

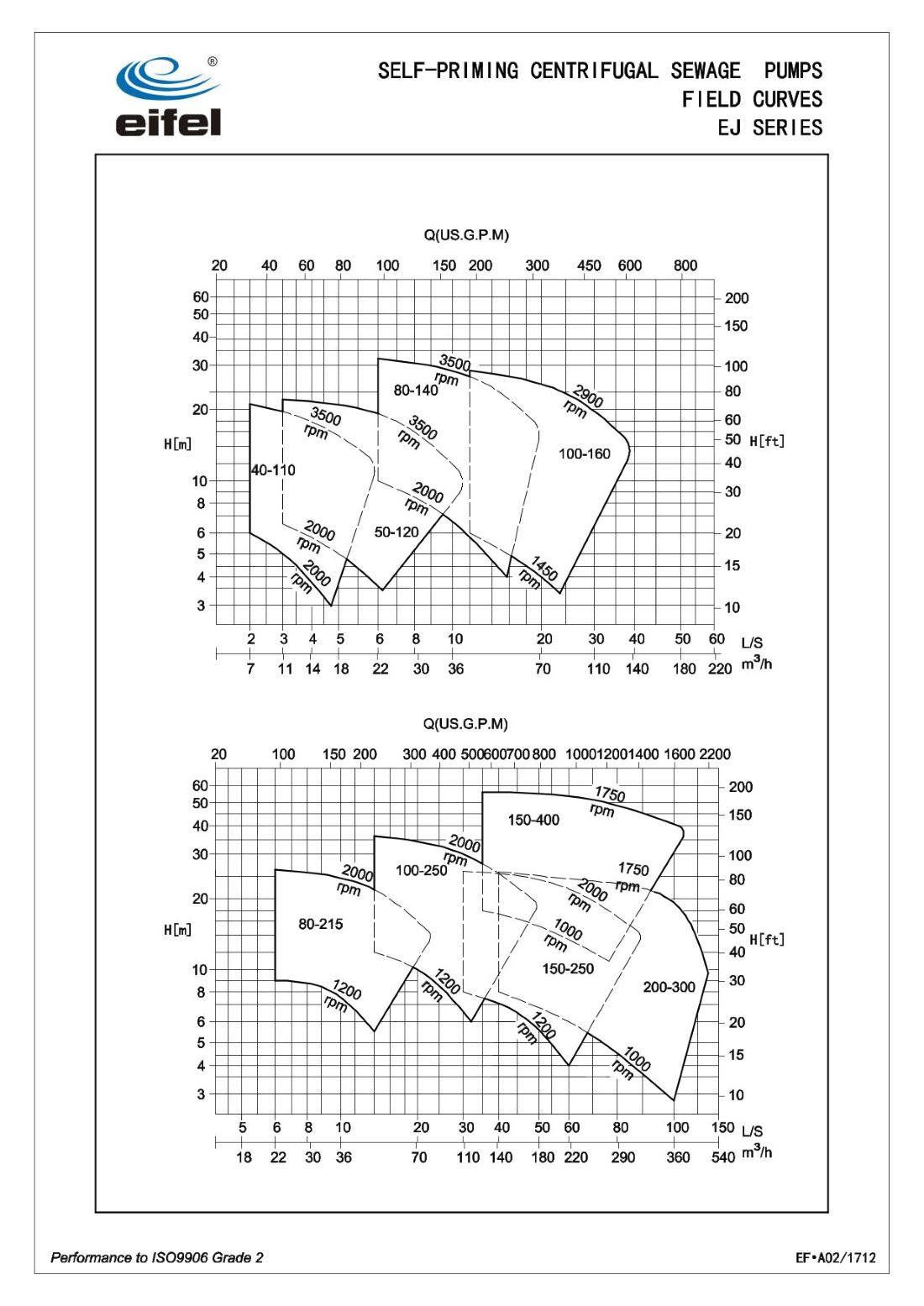

Field Chart
