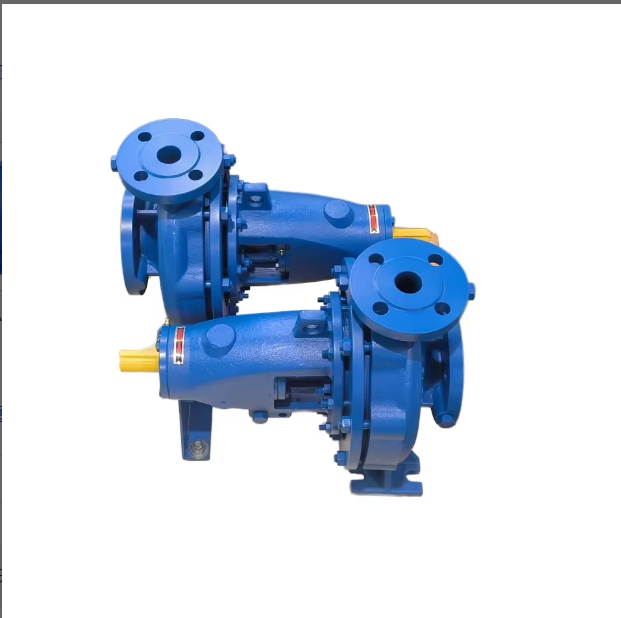

DIN24255/ EN733 Standard Horizontal End Suction Centrifugal Pump for Industrial Use
EIFEL EA series end suction centrifugal pumps are designed complying to BS EN733 / DIN24255 standard. This series of pumps have great advantages in interchangeable parts, high quality and low cost, wide applications in plants, mines, city water supplies, fire-fighting systems, air-condition systems and irrigation.
Product Series :
EA SeriesApplicable Standard :
EN733 / DIN24255 StandarCapacities :
4~1584 m3/hHeads :
2~150mInlet and outlet diameter: :
32~300 mmSpeed(r/min) :
1450 or 2900rpm (50Hz) / 1750 or 3500rpm (60Hz)Max. Working Pressure :
1.0MPa standard; 1.6MPa on requestTemperature :
85℃(standard) ; 120℃(on request)EA Series EN733/ DIN24255 Horizontal End Suction Centrifugal Pump for Industrial Use
Manufactured to meet BS EN733 / DIN24255 standards, EIFEL EA series end suction centrifugal pumps feature interchangeable parts, superior quality and competitive pricing. They are extensively used in plants, mines, urban water supply, fire-fighting systems, air-conditioning systems and irrigation.

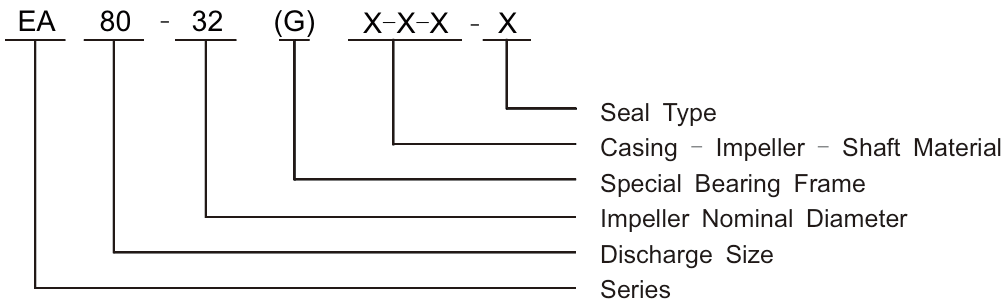

Model Instruction
Application
Material Code
C: Cast Iron
Q: Ductile Iron
B: Brass
B85: Bronze
S: ASTM 420
45: ASTM 1045
S304: ASTM 304
S316: ASTM 316
Design & Structure
| Design | Performance and dimensions referring to the European standard BS EN733 / DIN24255 |
| Structure | Horizontal, Axial End-Suction, Single-Stage, Single-Suction, Volute Casing, Back pull-out |
| DN (mm) | 32~300 |
| Flange | DIN2501 PN16 GB / T17241.6 PN1.6 (ANSI, JIS, AS...) |
Material
| Part | Standard Material | Options on request |
| Casing | Cast Iron | Ductile Iron / ASTM304(CF8) / ASTM316(CF8M) |
| Impeller | Brass | Cast Iron / ASTM304(CF8) / ASTM316(CF8M) |
| Shaft | ASTM420 | ASTM304 / ASTM316 / ASTM1045 |
| Shaft Sleeve | Mechancail Seal | Gland Packing |
Operating Data
| Flow Rate(Q) | 4~1584 m3/h |
| Head (H) | 2~150m |
| Speed | 1450 or 2900rpm (50Hz) / 1750 or 3500rpm (60Hz) |
| Max Temperature | 85℃ (standard) ; 120℃ (on request) |
| Working Pressure | 1.0MPa standard; 1.6MPa on request |
| Conveying Medium | Clean water or liquids similar to clean water in physical property |

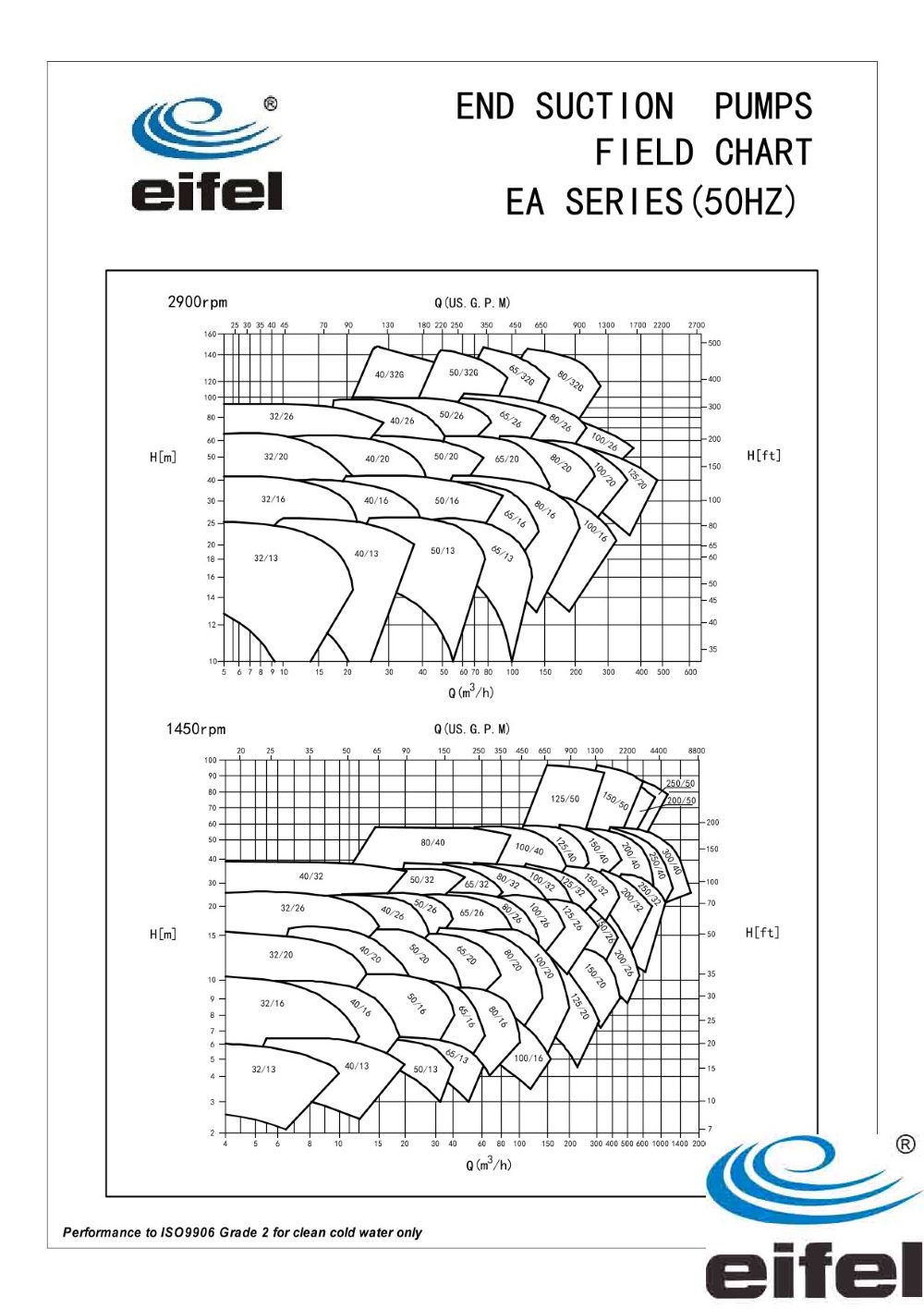

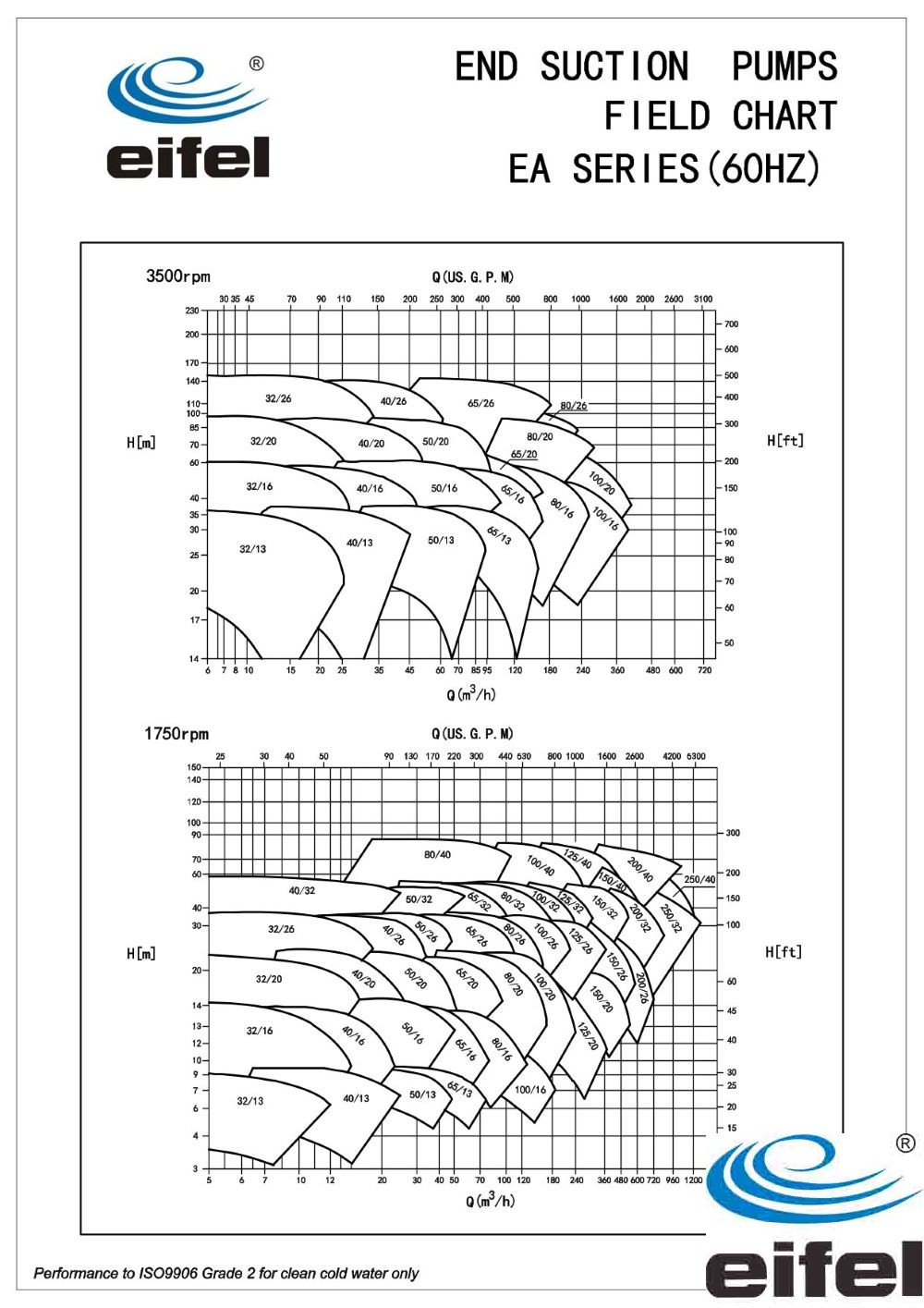

Field Chart
EIFEL EA series end suction centrifugal pumps are designed complying to BS EN733 / DIN24255 standard. This series of pumps have great advantages in interchangeable parts, high quality and low cost, wide applications in plants, mines, city water supplies, fire-fighting systems, air-condition systems and irrigation.
Read More
This is a high-performance EN733 end suction pump designed for commercial building services, industrial cooling systems, irrigation and general water transfer. Trusted by contractors, OEM customers and pump package builders worldwide.
Read More
