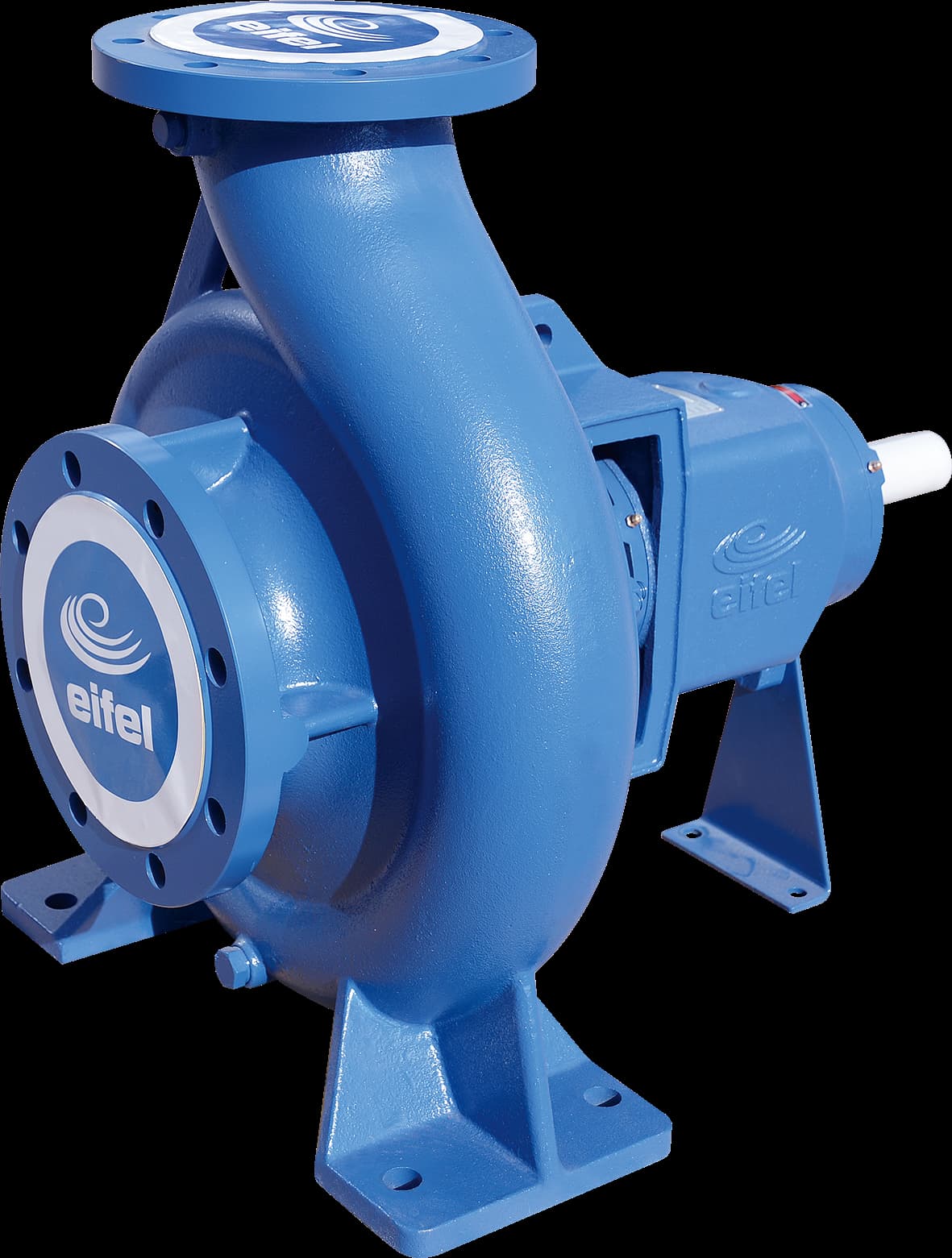

EN733/DIN24255 Standard Horizontal End Suction Water Pump for Irrigation
This is a high-performance EN733 end suction pump designed for commercial building services, industrial cooling systems, irrigation and general water transfer. Trusted by contractors, OEM customers and pump package builders worldwide.
Product Series :
EA SeriesApplicable Standard :
EN733 / DIN24255Capacities :
4~1584m³/hHeads :
2~150mInlet and outlet diameter: :
32~300mmSpeed(r/min) :
1450 or 2900 rpm(50Hz) / 1750 or 3500 rpm(60Hz)Max. Working Pressure :
1.0MPa standard; 1.6MPa on requestTemperature :
85℃(standard); 120℃(on requset)EN733 Standard Compliance for dimensional interchangeability and ease of replacement
Energy-Saving Hydraulic Design delivering high efficiency
Sturdy & Durable Construction suitable for continuous duty
Back Pull-Out Maintenance for reduced service time
Wide Range of Impeller & Material Options for different fluids
OEM/ODM Ready — color, nameplate, logo, and motor brand customization
Flow up to 1,500 m³/h
Head up to 160 m
Temperature from –20°C to 120°C
Pressure rating PN10 or PN16
Chilled water pumps
Industrial circulation pumps
Irrigation water pumps
Water treatment pump systems
Booster pump sets
Customized OEM pump skid packages
21+ years manufacturing experience
Global supply to over 70 countries
Full QC traceability & ISO certifications
Flexible customization for distributors and project contractors
| Part | Standard Material | Option on Request |
| Casing | Cast Iron | Ductile Iron/ ASTM304(CF8) / ASTM316 (CF8M) |
| Impeller | Brass | Cast Iron/ ASTM304(CF8) / ASTM316 (CF8M) |
| Shaft | ASTM420 | ASTM304 / ASTM316 / ASTM1045 |
| Shaft Sleeve | Mechanical Seal | Gland Packing |

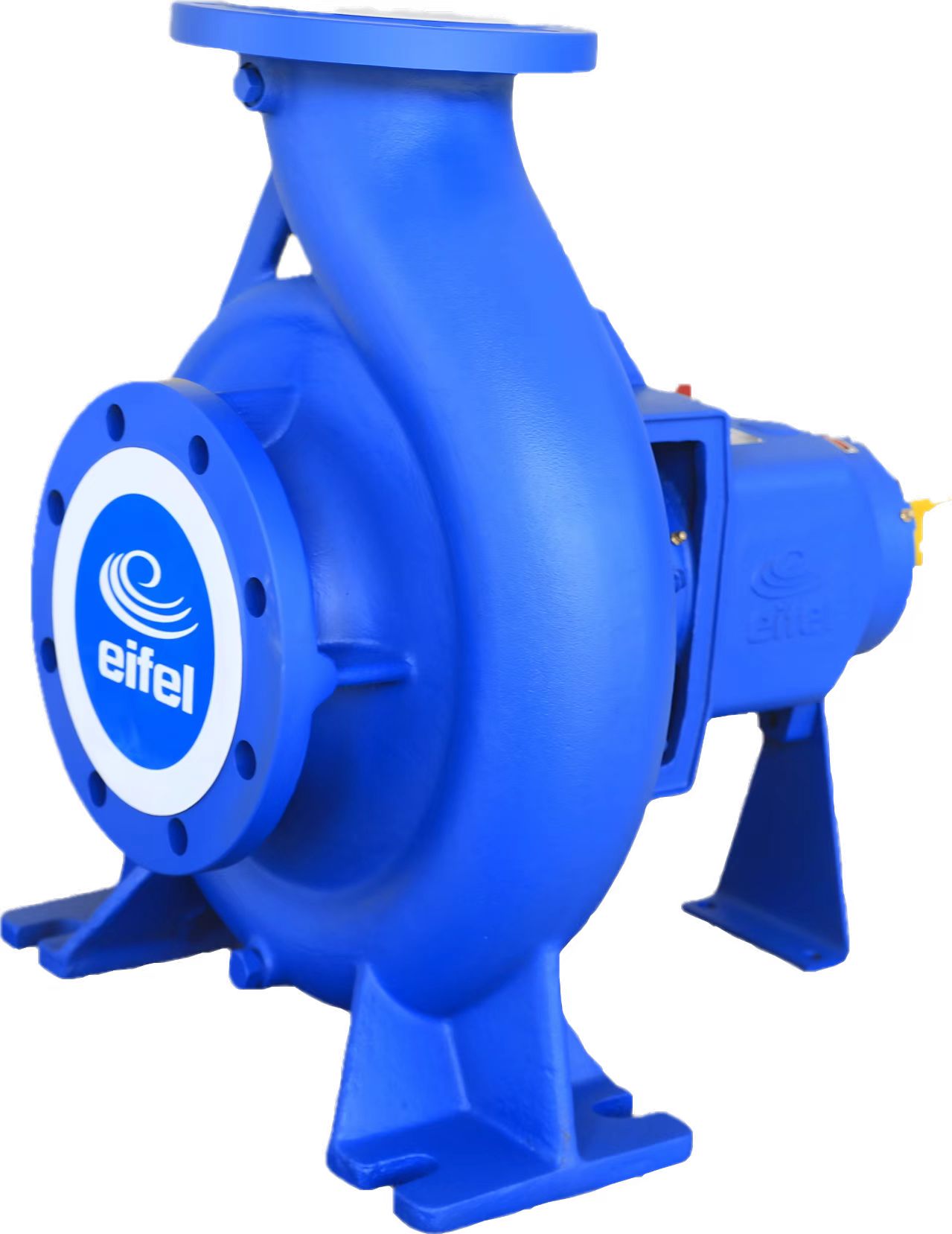

EIFEL EA series end suction centrifugal pumps are designed complying to BS EN733 / DIN24255 standard. This series of pumps have great advantages in interchangeable parts, high quality and low cost, wide applications in plants, mines, city water supplies, fire-fighting systems, air-condition systems and irrigation.
Read More
This is a high-performance EN733 end suction pump designed for commercial building services, industrial cooling systems, irrigation and general water transfer. Trusted by contractors, OEM customers and pump package builders worldwide.
Read More
