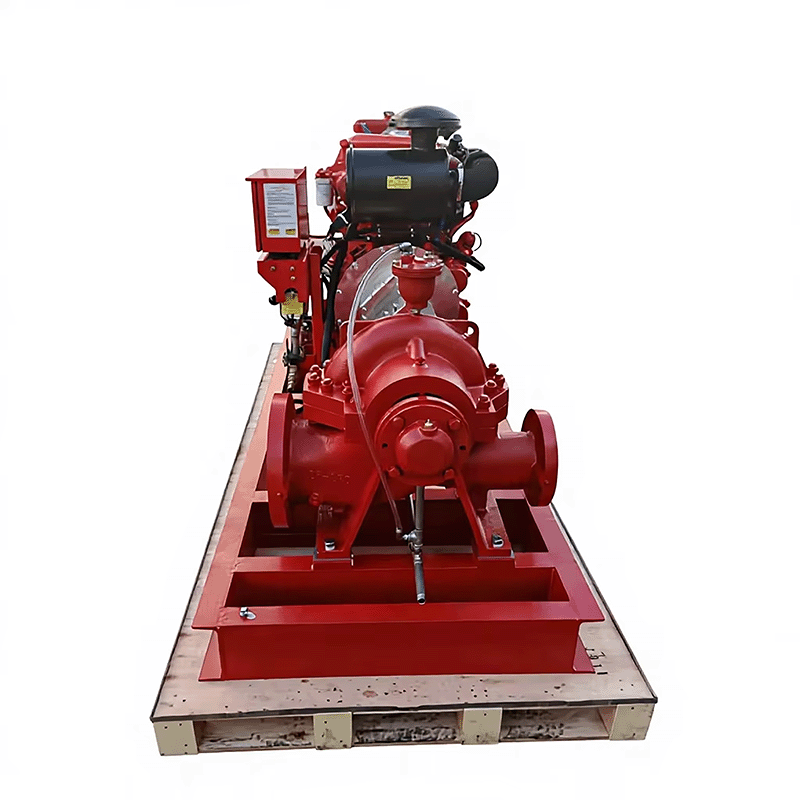

EIFEL UL FM Diesel Engine Fire Pump Double-Suction Split Casing pump for Fire Protection System
Engineered for absolute safety, this pump fully complies with all requirements of the UL standard for safety, UL 448. It has been carefully designed and rigorously tested to meet the strict performance and safety mandates of this standard, which specifically governs stationary centrifugal fire pumps used in fire-protection services. This comprehensive design ensures dependable operation, maximum safety, and long-lasting durability in any application where UL 448 compliance is strictly required.
Suitable Media :
ESF SeriesApplicable Standard :
UL448-2013Heads :
82~304 PSISuction Diameter :
150~200 mmDischarge Diameter :
100~150mmSpeed(r/min) :
2900 RPMFlowrate :
450~2000 US.GPMMax. Working Pressure :
230~400 PSIUL Listed Horizontal Double Suction Split-Case Fire Pump
This pump is of high flow rate, high efficiency, stable operation, low noise and long service life, easy to install and maintain.
Material Code
Q: Ductile Iron Casing
C250: Cast Iron Casing
B85: Bronze Impeller
40Cr: 40CR Shaft
P: Gland Packing
A: ANSI Flange
Product Standard
Performance is meeting with UL44-8-2013 regulation.
Flange Standard
ASME B16.42-1998 CLSS300、ASME B16.42-1998 CLASS250
Operating Data
| Suction Diameter | 150~200 mm |
| Discharge Diameter | 100~150 mm |
| Flow Rate (Q) | 450~2000 us.gpm |
| Head (H) | 82~304 psi |
| Speed | 2900 rpm |
| Working Pressure | 230~400 psi |
Exploded Drawing
List of Parts
Performance Curve
This pump is designed in accordance with all requirements of UL standard for safety (UL448).
