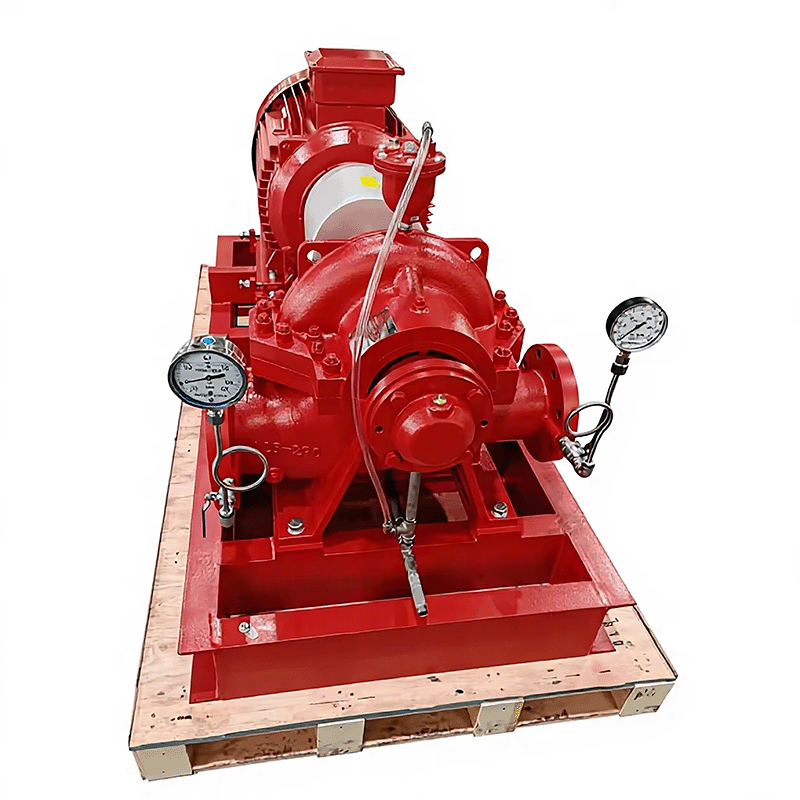

Horizontal Double Suction Split for Fire Pump Electric High Pressure Industrial UL Firefighting Water Pump
This pump is fully designed to meet all requirements of the UL standard for safety, UL 448. It has been engineered and tested to comply with the rigorous safety and performance criteria of this standard, which applies to stationary centrifugal fire pumps for fire-protection service. The design ensures reliable operation, safety, and durability in applications where UL 448 compliance is required.
Suitable Media :
ESF SeriesApplicable Standard :
UL448-2013Heads :
82~304 PSISuction Diameter :
150~200 mmDischarge Diameter :
100~150mmSpeed(r/min) :
2900 RPMFlowrate :
450~2000 US.GPMMax. Working Pressure :
230~400 PSIUL Listed Horizontal Double Suction Split-Case Fire Pump
This pump is of high flow rate, high efficiency, stable operation, low noise and long service life, easy to install and maintain.
Material Code
Q: Ductile Iron Casing
C250: Cast Iron Casing
B85: Bronze Impeller
40Cr: 40CR Shaft
P: Gland Packing
A: ANSI Flange
Product Standard
Performance is meeting with UL44-8-2013 regulation.
Flange Standard
ASME B16.42-1998 CLSS300、ASME B16.42-1998 CLASS250
Operating Data
| Suction Diameter | 150~200 mm |
| Discharge Diameter | 100~150 mm |
| Flow Rate (Q) | 450~2000 us.gpm |
| Head (H) | 82~304 psi |
| Speed | 2900 rpm |
| Working Pressure | 230~400 psi |
Exploded Drawing
List of Parts
Performance Curve
This pump is designed in accordance with all requirements of UL standard for safety (UL448).
