EIFEL UL Listed Horizontal Double Suction Split-Case Fire Pump with Ductile Iron Casing
This pump is designed in accordance with all requirements of UL standard for safety (UL448).
Suitable Media :
ESF SeriesApplicable Standard :
UL448-2013Heads :
82~304 PSISuction Diameter :
150~200 mmDischarge Diameter :
100~150mmSpeed(r/min) :
2900 RPMFlowrate :
450~2000 US.GPMMax. Working Pressure :
230~400 PSIUL Listed Horizontal Double Suction Split-Case Fire Pump
This pump is of high flow rate, high efficiency, stable operation, low noise and long service life, easy to install and maintain.
Material Code
Q: Ductile Iron Casing
C250: Cast Iron Casing
B85: Bronze Impeller
40Cr: 40CR Shaft
P: Gland Packing
A: ANSI Flange
Product Standard
Performance is meeting with UL44-8-2013 regulation.
Flange Standard
ASME B16.42-1998 CLSS300、ASME B16.42-1998 CLASS250
Operating Data
| Suction Diameter | 150~200 mm |
| Discharge Diameter | 100~150 mm |
| Flow Rate (Q) | 450~2000 us.gpm |
| Head (H) | 82~304 psi |
| Speed | 2900 rpm |
| Working Pressure | 230~400 psi |

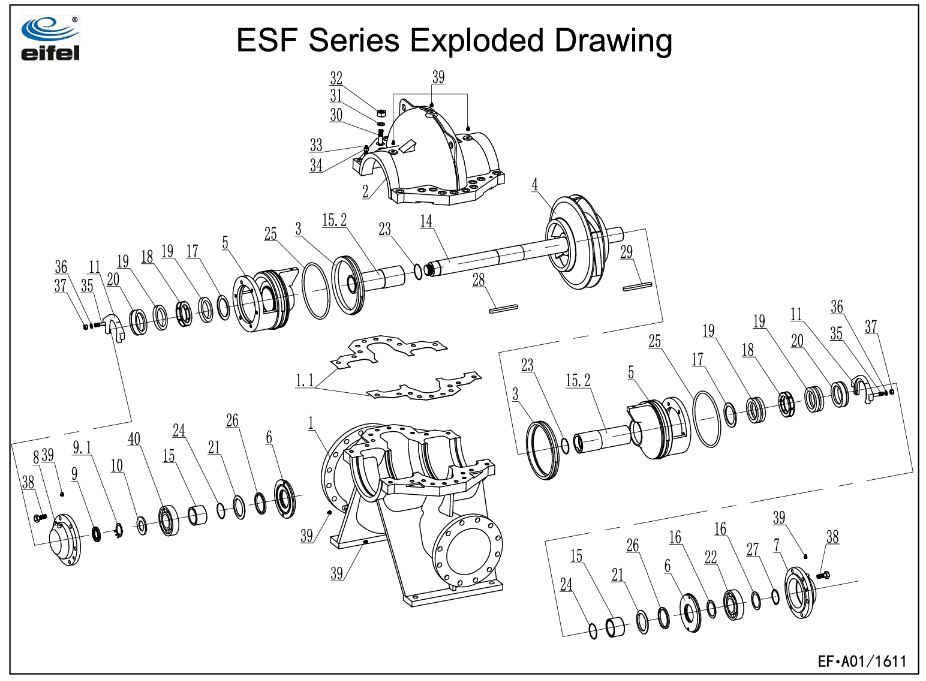

Exploded Drawing

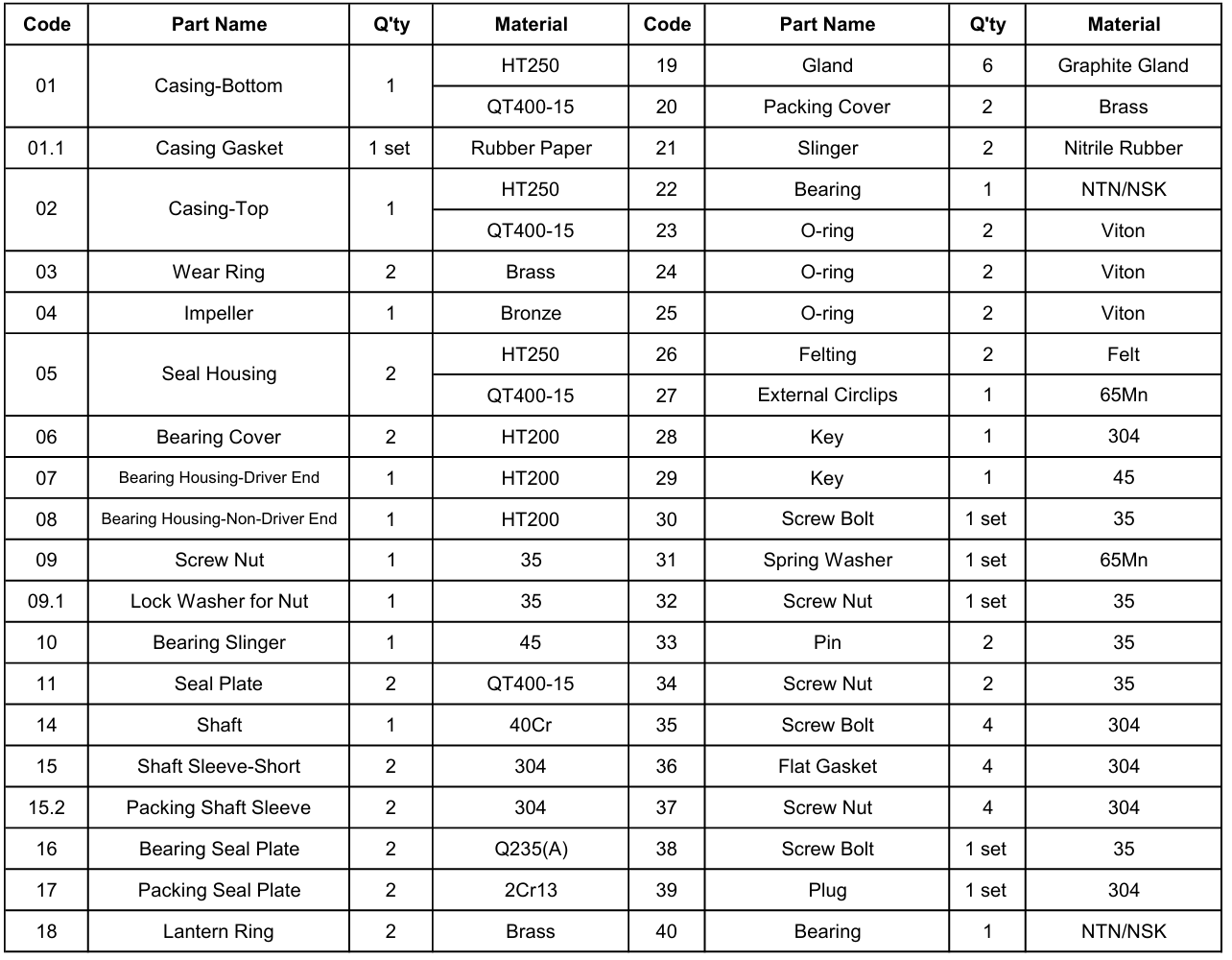

List of Parts

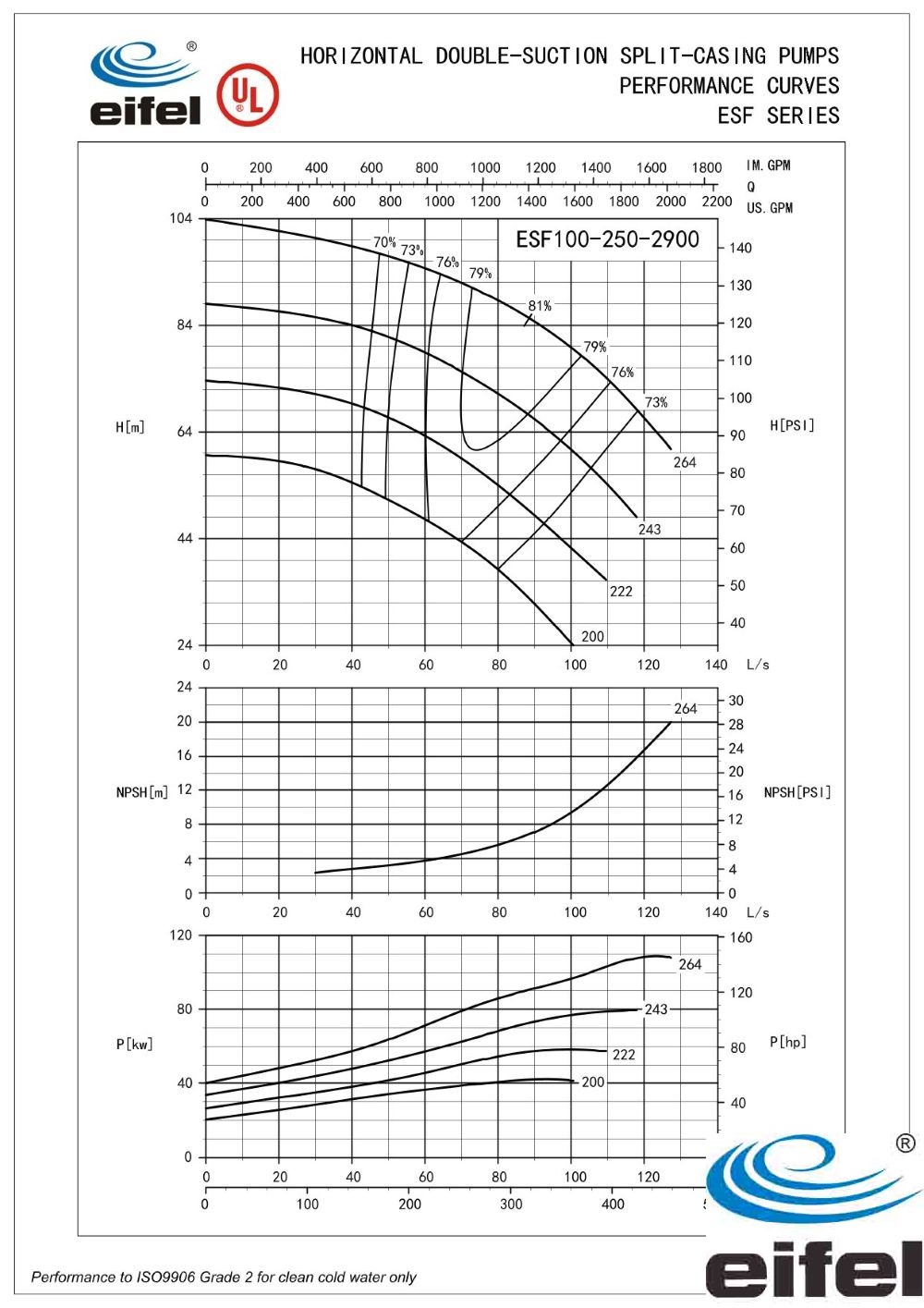

Performance Curve
This pump is designed in accordance with all requirements of UL standard for safety (UL448).
